Jf Automatic Blender Soap Making Industrial Liquid Detergent Machine with Stirrer

Product Description

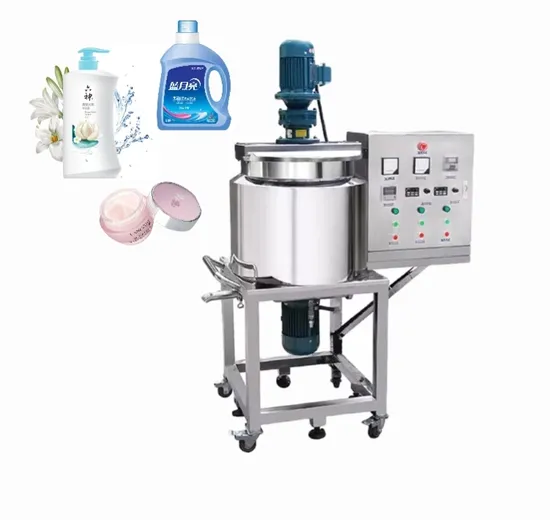

Automatic Blender Soap Making Industrial Liquid Detergent Machine with stirrer
Homogeneous mixing tank
High speed disperser, strong mixing scattered viscous, solid liquid materials production can quickly dissolve in the liquid AES, AESA,
LSA of refractory materials, save the energy consumption and shorten the production cycle.Stepless speed change device is used in
the main mixing in low temperature, high viscous when reducing bubble formation;Gear pump cycle discharging device, can speed
up the product formation and rapid discharge.

Application	Cosmetic, food and beverage, pharmacy, painting ,etc.	Surface treatment	Polishing
Working Volume	200Lcustomizable	Stirring Paddle	Customized according to materials
Input Power	380v50hz	Pot Body Material	Inner 316, jacket/outer 304
Heating Method	Steam/electric heating	Discharging Way	Bottom discharge
Speed Of Stirring	0.63r/min	Electrical Apparatus Element	Delixi/Siemens etc
Homogeneous Speed	3000r/min	Frequency Converter	Delta/Panasonic etc

Specification	Volume (L)	Blending Power (KW)	Blending rotation speed (r/min)	Homogenizing Power (KW)	Homogenizing rotation speed (r/min)
PMC-200	200	1.5	0~65	3	3000
PMC-500	500	2.2	0~65	4	3000
PMC-1000	1000	2.2 - 4	0~65	7.5	3000
PMC-1500	1500	4 - 5.5	0~65	11	3000
PMC-2000	2000	5.5	0~53	11	3000
PMC-3000	3000	7.5	0~53	15	1500
PMC-5000	5000	11	0~53	22	1500

Feature1.The mixing tank is made of all stainless steel materials. Its inner wall is made of high-quality 316L stainless steel (The part in contact with the material). The tank and pipe are mirror polished. Complying with GMP requirements and specifications.2.The equipment consists of a stainless steel electric control cabinet and a main pot. The whole machine has a compact structure and it is easy to operate.3. You can configure heating pot and cooling pot separately according to actual requirements. The materials can be heated or cooled according to process requirements. The heating method can be steam heating or electric heating.4. There are various types of durable agitator blade, with strong mixing strength. It is suitable for the production of different products.5. The motor is equipped with an advanced frequency converter, which can adjust the stirring speed according to production requirements.6. You can choose to configure a AES dissolver to accelerate material dissolution and emulsification. It can save time and labor for you.7. The stainless steel electric control cabinet can comprehensively monitor its operation, and it can display data, such as temperature and stirring speed, etc.8. It can be equipped with vacuum pump for vacuum bubble extraction (optional).
Detailed Photos

Factory Case
Packing & Delivery
1. Package: PE film cover inside and then plywood case.
2. Accept terms: EXW, FOB, C&F, CIF, etc.
3. Shipping by Express, Air or Sea based on customers' requirements and lowest cost solution.
We will packs all of the machine and parts in the firm case that suitable for shipping.Machine packed by packed with seaworthy strong wooden case as the general export package. We use carton as inner packing, in case of damage in the course of carriage,we also can pack it according to clients' requirements.
Company Profile
We offering Turnkey service from A to Z to customers, we will can suggest customer the most suitable machines according to their Formula, Raw material. Support you Manufacturing- Installation- Training- Maintenance- Technical Support. We could also customize machines according to your demands, We could send our engineer to your factory to install machines and train your workers of operation and maintenance.
MATERIAL SOURCES OF PARTS80%of the main parts of our products are provided by world's famous suppliers. During long-term cooperation and exchange with them, we have accumulated much valuable experience, so that we can provide customers with high quality products and more effective guarantee.
Productive Process
Certifications
FAQ
1. About Delivery termQ: What's the delivery term for doing business with you?A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead timeQ: What's the leading time after placing order?A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment timeQ: What's the payment term?A: T/T 40% as down payment, 60% balance payment before delivery.
4. About QualityQ: How do you control your quality?A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About PackingQ: How do you pack the machines?A: Standard export wooden case, to avoid damage during delivery.
6. About CustomizedQ: Can you produce according to the samples?A: Yes,we can produce by your samples or technical drawings.
Production line
We could offer various kinds of machines and whole production line.(1) Cream, paste Products,
In cosmetic industry: face cream, body cream, washing cream, vaseline etc In food industry : sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc In chemical industry: welding paste, ink, paint, pigment etc. Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(2) Liquid productsshampoo, lotion, liquid soap, detergent, juice, solution etc.Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(3) Perfume products:
Production line for them: RO water treatment - Perfume freeze machine- - storage tanks- filling machine-cap locking machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc.

---
