USA Standard Cheap and Fine Gummy Candy Soft Sweet Pectin Gelatin Making Line

Product Description

Prifile:

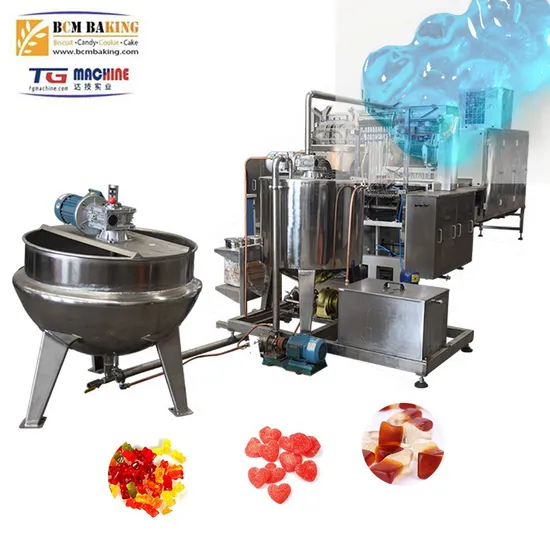

JelIy candy processing line is an advanced and continuous plant for making different size of jelly candies (QQ candies) .It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied. Thisdepositing line consists of jacket dissolvingcooker, gear pump, storage strainer, storagetank, discharging pump, color & flavorjigger, color &flavor mixer, depositor, cooling tunnel, electric control cabinet, etc.
With the sanitary structure design, on one hand it can produce one or two colors candy; on the other hand, it can automatically blend theessence pigment and fermenting liquid in accurate quantity ratio.


TECHNICAL SPECIFICATIONS:

Model	GD150Q	GD300Q	GD450Q
Production capacity ( kg/h)	150	300	450
Rated depositing times(n/min)	20~25	20~25	20~25
Weight of each candies(g): 1. two colors 2. single color	2g~.6g 1.5g~6g	2g~6g 1.5g~6g	2g~6g 1.5g~6g
Electric power needed	8kw/380V	12kw/380V	16kw/380V
Refrigerator	MT160 x1 15,000kcal/h 10.5kw	MT160x2 30,000kcal/h 21kw	MT160x2 30,000kcal/h 21kw
Compressed air consumption Compressed air pressure	0.20m ³ /min 0.4-0.6 Mpa	0.25m ³ /min 0.4-0.6 Mpa	0.25m ³ /min 0.4-0.6 Mpa
Conditions needed for the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Conditions needed for the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Length of the whole line (m)	9m	11m	15m
Gross weight ( Kgs)	Approx.3000	Approx.4000	Approx.5000

FLOW CHART:
Sugar and gelatin dissolving→ mixing→ cooling→ transporting→ depositing → cooling → de-moulding →following disposalà packing

MAIN EQUIPMENT LIST:
The whole line is comprised of following equipment
MODEL: GD150Q

ITEM NO.	EQUIPMENT	SPECIFICATION	UNIT	QTY
1	Fixed COOKER	200 L	PCS	2
2	GEAR PUMP 1''		PCS	1
3	COOLING TANK	300L	SET	1
4	TRANSPORTING PUMP		SET	1
5	COLOR AND FLAVOR MIXING SYSTEM	200L	PCS	2
6	JELLY CANY DEPOSITOR	300KGS/H	PCS	1
7	COOLING TUNNEL		SET	1
8	MOULD	GDQ300:520pcs	SET	1
9	ELECTRICAL CABINET		SET	1
10	DRYING ROOM SYSTEM	72Kw	Set	1
11	Turnover tray	600x 600 x 30mm	Pcs	800
12	Turnover Cart	700x700x1800mm	set	16
13	Oil sprayer	1800x1250x1800mm	set	1
14	Sugar coater	3800x1250x1800mm	set	1

COMPANY INFORMATION:
Shanghai Target Industry Co., Ltd is the sales and service company for Shanghai SHINWEI Machinery Manufacturing Co., Ltd which is the first manufacturer to build the complete production line for depositing hard candies in China and has accumulated 40 years' fabrication experience. It is also one of the leading and professional exporters in China by providing customers home and abroad with high quality confectionery, chocolate, biscuit and packaging machinery. Our machineries have been exported to East European, south America, middle east, southeast Asia.

Strength:
Why choose us?
a.Established in 1982, nearly 20-year experiences in the area of machinery manufacturing of food processing;
b.Cooperate with well-known enterprises for some mechanical parts;
c.Adopt environment-friendly and food-grade materials;
d.Offer customized machineries and give suggestion for plant layout.
Service:
After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
Shippment:
Wooden packing as per export standard.

---
