Best Quality Universal Cylindrical Industrial Grinding Machine with Nice Price

Product Description

Product Description
Grinding Machine
The bed, the upper and lower work surface, headstock, switch, tailstock, wheelhead, hydraulic lubrication and hydraulic control system, ZHENGTAI electric parts.

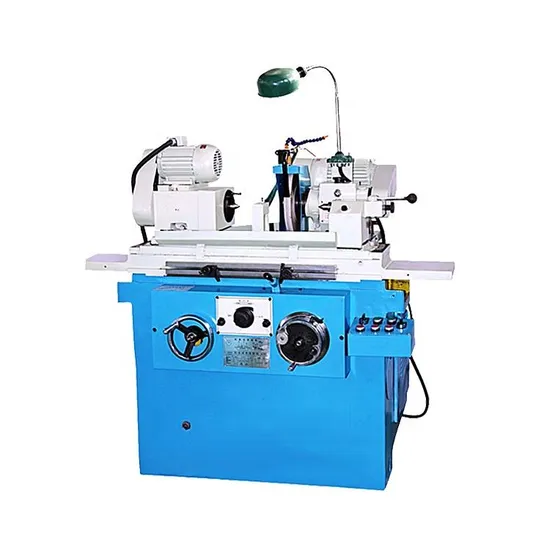

M1408 Universal cylindrical grinder is simple, fast processing speed, high precision, and low price; and there are two ways of transmission : hydraulic or manual ; for precision machining of small pieces of the machinery industry.
Standard Accessories:

Coolant tank	set	1
Grinding wheel dresser	set	1
Wheel hub	set	2
Wheel balancing mandrel	set	1
Internal grinding tool	set	1
3-claw chuck	set	1
Driving dog	set	1
Carbide-tipped center	pcs	2
Leveling wedge	pcs	3
Quill shaft for internal grinding	set	2
Chuck base	pcs	1

Optional Accessories:
The foundation depth depends upon the soilproperties, but it should be less than 400mm

Grinding dia. (O.D/I.D)	φ2-80mm / φ10-60mm
Grinding length (O.D./I.D.)	300mm/125mm
Center height	115mm
Max. worktable traverse	340mm
Max workpiece weight	10Kg
Worktable speed	0.1-4m/min
Wheel peripheral velocity	35m/sec
Max travel of worktable	340mm
Swivel range of worktable	-3~+7°
External wheel size	Maxφ250x25xφ75mm Minφ180x25xφ75mm
Internal wheel spindle rotating speed	16000rpm
Workhead and tailstock center	Morse No.3
Overall dimension (L*W*H)	1360x1240x1000mm
Machine weight	1500kg
Total motor power	2.34KW

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
