Qy Fish Pond Weed Harvester and Cleaner for Collecting Garbage River Cleaning Machine

Product Description

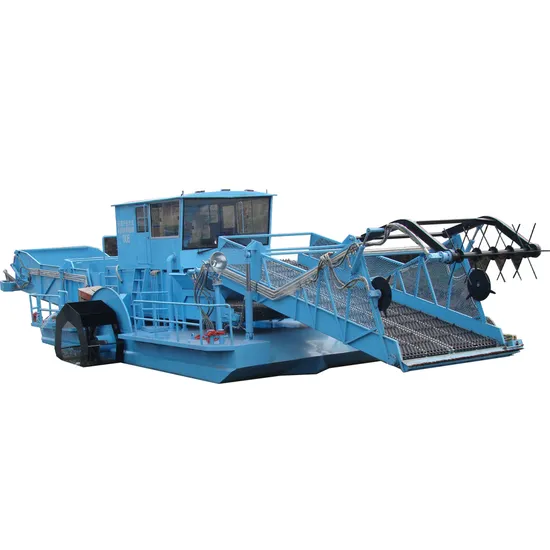

QY Fish Pond Weed Harvester And Cleaner For Collecting Garbage River Cleaning Machine
Product Description

Model	QY-GC-60	QY-GC-85	QY-GC-110
The total length of hull	10.8m	13.5m	16m
The hull is long	5m	7.5m	9m
Width of hull	3m	3m	3.4m
The hull is highly	1.0m	1.0m	1.0m
No load draft	0.3-0.4m	0.3-0.4m	0.3-0.4m
Load draught	0.4-0.6m	0.4-0.6m	0.4-0.6m
Collect the depth	≤1.8m	≤1.8m	≤2m
Collect the width	≤4m	≤2m	≤2.2m
Loading capacity	5m³	8-10m³	14-15m³
Power of engine	45kw	60kw	90kw
Sailing speed	5-7km/h	5-7km/h	5-20km/h
Work speed	3-5km/h	3-5km/h	3-5km/h
Endurance	12h	12h	12h
Drive mode	Bilateral paddle wheel or propeller	Bilateral paddle	Bilateral paddle
Discharge height	≤3m	≤3m	≤4m
Amount of work	1000-3000m2/h	1000-4000m2/h	1000-6000m2/h

1. The ship can efficiently harvest water grass, only one person in the cab operation, can complete the gathering, collection, water filtration, transportation, storage, unloading, navigation and other work, has a powerful water grass harvesting function and water surface cleaning function,all kinds of floating garbage can be successfully salvaged.
2. The ship has fast speed, wide harvesting range, few harvesting dead corners, safe operation, wide seaworthiness area, easy operation and high degree of automation.
3. The front, middle and rear compartments of the ship are composed of high-strength stainless steel conveyor belts, which are equipped with stainless steel hooks.The average bearing capacity of each stainless steel hook is up to 1ton,which can be firmly and round hooked in water grass to prevent it from slipping into the water again. The conveyor belt bearing capacity,durable, easy to replace, water grass hook hanging ability.
4. The ship is equipped with a pair of transverse knives at the bottom of the harvest, a pair of vertical knives (wheels) on the left and right sides,and a set of mechanical collecting wheels, which can not only harvest weeds but also clean up floating objects on the water.
5. The boat is driven by double paddle wheels, so it will not be entangled by weeds or fishing nets in the process of driving. You can turn around in place to minimize the turning radius.

Application
Packaging & Shipping
After Sales Service

FAQ
QY Fish Pond Weed Harvester And Cleaner For Collecting Garbage River Cleaning Machine

---
