Custom Sample Construction Machinery Transport Truck Excavator Zl15 Transmission Planetary Gearbox

Product Description

Custom sample construction machinery transport truck excavator Zl15 transmission planetary gearbox Product Description
Features of construction
1, the transmission type is fixed shaft type, normal mesh, hydraulic shift, small shift impact.
2. Its two clutch shells are integrated and installed on the same shaft, and four groups of clutches work together to synthesize two forward gears and two back gears
High drive efficiency.
3. The front end of the gearbox is equipped with a brake for parking braking.
4, gearbox and torque converter become independent power transmission unit, easy maintenance

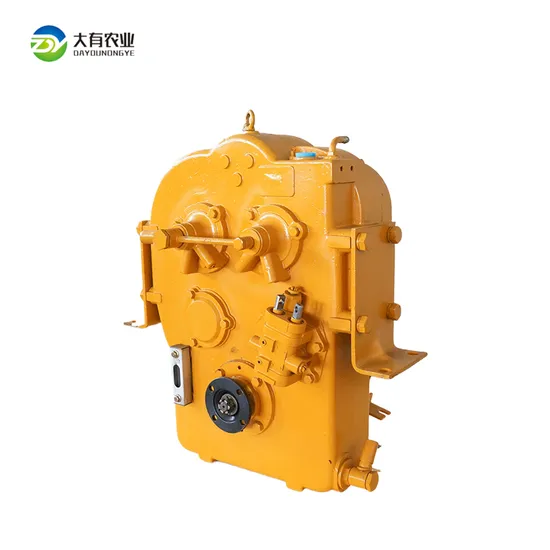

Detailed Photos
Product Parameters

Match the rated engine power range		55KW-75KW
Match the rated engine speed range		1800r/min~2400r/min
Transmission ratio:F1		2.16	2.47
F2		0.77	0.878
R1		2.21	2.524
R2		0.79	0.898
Input axis rotation direction (facing input)		clockwise
Forward output axis rotation direction		The same as the input shaft rotation direction
Working fluid		6 or 8 hydraulic transmission oil (not to mix)
Control valve oil pressure		1.2MPa~1.5MPa
Lubricate cooling oil pressure		0.15MPa~0.3MPa
Torque converter feed pressure		80-110 degrees Celsius

Gearbox dimensions
Company Profile
Qingzhou Yunqi Machinery Sales Co., Ltd. is located in the Economic development zone of Qingzhou City, Shandong Province, with superior geographical location and convenient transportation. It has two branches, Qingzhou Dayou Agricultural Equipment Technology Co., Ltd. And Qingzhou Shunye Machinery Technology Co., Ltd., mainly engaged in sugarcane harvester and construction machinery gearbox.
Dayou Agricultural Equipment Technology Co., Ltd. Has a complete set of large-scale factory 10000 square meters, office area 1500 square meters. At present, the company has seven departments including manufacturing department, technology department, research and development center, purchasing department, Marketing Department (including international market management department), after-sales service department, and comprehensive department, and has the independent management ability and channels of machinery import and export foreign trade. The company has two full-time technical consultants, and has maintained long-term cooperation with several major national research institutes and professional colleges. The company has strong technical force, 3 senior engineers, 12 R & D, design and process engineers, and rich work experience. Excellent sales and after-sales team is the main guarantee for customer service. Qingzhou Dayou is fully capable of providing comprehensive solutions for our customers to relieve all the worries of customers.
