US$5,000.00-12,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Certification
CE, ISO 9001
Max.Drilling Dia(mm)
80 mm
Spindle Travel(mm)
250 mm
Spindle Speed Range(R/Min)
40-570,9 Steps
Feed (mm/R)
0.1-0.78,6 Steps
Transport Package
1452*965*2787 mm
Production Capacity
100 Sets/Year
Product Description

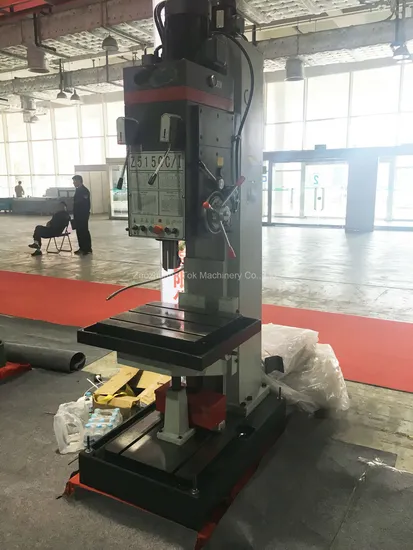

hand drilling machine, deep hole drilling machine
Feature: Box type vertical drilling machine series can complete the processing of drilling ,boring,reaming, coutersinding, tapping . There are high precision ,good rigidity,strong torque,low noise and wide range of speed adjustment features The machine has automatic tapping reverse structure,the principle axis tapping can automatically recerse clockwise,and it is convenient for tapping in head hole and deep hole
| Specification | Z51100 | Z5180C | Z5163C |
| Max.drilling dia(mm) | 100 | 80 | 63 |
| Maximum feed resistance(N) | 45000 | 30000 | 30000 |
| Max.The spindletorque(N.m) | 1150 | 800 | 800 |
| Spindle Taper | Morse No.6 | Morse No.6 | Morse No.5 |
| Distance from spindle to guideway (mm) | 480 | 375 | 375 |
| Spindle travel(mm) | 310 | 250 | 250 |
| Spindle box(mm) | 300 | 250 | 250 |
| Spindle speed range(r/min) | 26-320,6 steps | 40-570,9 steps | 40-570,9 strps |
| Feed (mm/r) | 0.096-0.717,6 steps | 0.1-0.78,6 steps | 0.1-0.78,6 steps |
| Table travel (mm) | 300 | 300 | 300 |
| Table size (mm) | 760-650 | 650-550 | 650-550 |
| Max. Distance from spindle to table surface(mm) | 850 | 800 | 800 |
| Main motor (Kw) | 7.5 | 5.5 | 5.5 |
| Coolant pump(L/min) | 25 | 25 | 25 |
| Machine size(mm) | 1465*970*3170 | 1452*965*2787 | 1452*965*2787 |
| Weight (Kg) | 3500 | 2500 | 2500 |
>>
