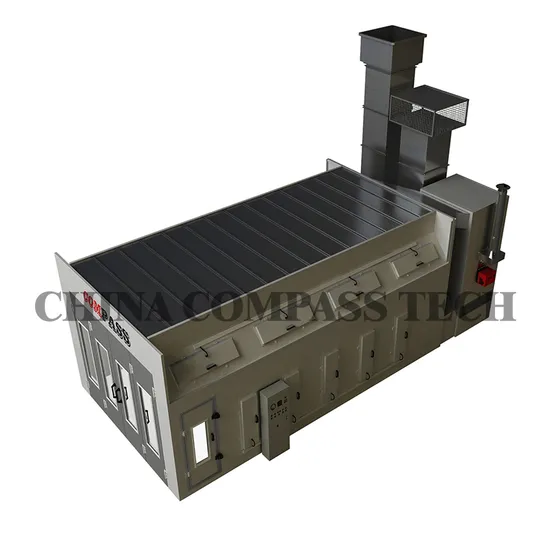

CP-8-42 Australia standard paint booth product details:
| Outside Dimension (mm) | 8150×5650×3400 | Inside Dimension(mm) | 8050×4200×2800 |
| Front Door(mm) | 3200×2600(W*H) | Service door(mm) | 800×2000(W*H) |
| Total Power | 18kw |
| Cabin system | Front door | 4 folded sheet metal formed door |
| Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.476mm(rock-wool is for option) |
| Ceiling panel | Galvanized steel sheet |
| Basement | NO |
| Door glass | 5mm tempered glass |
| Air make-up system | Air inlet fan system | 1 set 7.5kw turbo fan, fan model:DDF-800A1, with one manual damper |
| Exhausted fan system | 1 set 7.5kw turbo fan, fan model: DDF-800A1, with one manual damper |
| Air inlet capacity | 32000m3/h |
| Exhuasted capacity | 32000m3/h |
| Exhausted ducting | Two meters straight ducting for air inlet, four meters straight ducting for exhausted. One wheather hood and one flop damper. |
| Purification system | Pre-filter | G3 grade |
| Ceiling filter | 600G filter EU5 / F5 |
| Floor filter | Fiberglass filter |
| Exhausted filter | Filber glass and carbon filter |
| Heating system | Heat Exchanger | SUS 304 200KW stainless heating exchanger |
| Heating burner | Riello G20 diesel oil burner (gas burner is for option) |
| Heating productivity | 200000Kcal/hour |
| Spray to baking switch | Pneumatic damper |
| Chimney ducting | 4m straight chimney and one chimney hood |
| heating temperature | Maximum 80ºC |
| fuel consumption | 6-8L/vehicle |
| Lighting system | Ceiling lighting | 10Units, each 4 *4W LED lamps. |
| Side lighting | 10Units, each 4 * 24W LED lamps. |
| Illumination | 1200LUX |
| Control system | Switch controlling | Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge |
