US$20,000.00-22,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Max. Swing Dia. Over Bed
400mm
Max. Turning Length
340mm
Spindle End Type
A2-5/A2-6
Spindle Motor Power
7.5/11kw
Positioning Accuracy(X,Z)
0.008/1000mm
Repeat Positioning Accuracy(X,Z)
≤0.005mm
Transport Package
Wooden Case
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
- Adopt TAIWAN technology, most parts adopt GERMAN/JAPAN/TAIWAN brand

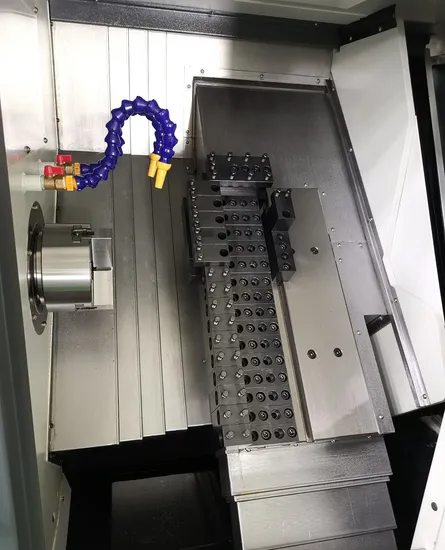

- Adopt 45°mono-block slant bed design
- Adopt wide linear guideway,high rigidity
- Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision spindle unit(H5 can choose 6000rpm synchronous servo electro-spindle), spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision C3 class pre-stretched ball screw,coupled with feeding motor directly by linkager, no gap
Details:
* As option
| Item | Specification | Unit | BL-H5 | BL-H6 |
| Capacity | Chuck size | / | collet/5'' chuck* | 6'' chuck/8'' chuck* | 8'' chuck/10'' chuck* |
| Max. swing dia. over bed | mm | Φ320 | Φ400 |
| Max. swing dia. over slide | mm | Φ126 | Φ126 |
| Max. turning length | mm | 320 | 340(Gang tool);300(8T tool turret) |
| Max. turning dia. | mm | Φ300 | Φ300 |
| Standard turning dia. | mm | Φ120 | Φ150 |
| Spindle | Spindle bore | mm | Φ36 | Φ46 | Φ56 | Φ66 |
| Spindle end type | / | A2-4 | A2-5 | A2-6 |
| Max. bar through dia. | mm | Φ24 | Φ35 | Φ45 | Φ51 |
| Spindle speed | rpm | 6000 | 5000 | 5000 | 4000 |
| Spindle motor power | kw | 5.5 | 7.5 | 11 |
| X/Z axes | X axes travel | mm | 420 | 460 |
| Z axes travel | mm | 320 | 340 |
| X/Z axes linear guideway width | mm | 30/30 | 35/35 |
| X axes ball screw O.D/pitch | mm | Φ25/10 | Φ32/10 |
| Z axes ball screw O.D/pitch | mm | Φ32/10 | Φ32/10 |
| X/Z axes rapid moving speed | m/min | 30/30 |
| Tool post | Tool turret type | / | Gang tool | Gang tool/8T hydraulic tool turret* |
| Toolshank size | mm | 20×20, Φ25 | 20×20, Φ25 | 25×25, Φ32 |
| Tailstock | Tailstock quill taper | / | None |
| Accuracy | Positioning accuracy(X,Z) | mm | 0.008/1000 |
| Repeat positioning accuracy(X,Z) | mm | ≤0.005 |
| Others | Overall size | mm | 1750×1590×1800 | 2140×1780×1780 |
| N.W. | kg | 1900 | 2700 | 2800 |
Main parts list:
| Item | Brand |
| Spindle unit | CHIAN top brand synchronous servo electro-spindle/TAIWAN-ROYAL |
| Tool turret | TAIWAN-GSA/YULIN/SWIFT |
| Ball screw | H5: TAIWAN-HIWIN C3 class
H6: JAPAN-THK |
| Ball screw bearing | GERMANY-FAG |
| Linear guideway | H5:TAIWAN-HIWIN P class
H6: JAPAN-THK |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Heat exchanger | Joint-venture |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic collet/chuck
-Gang tool/8T hydraulic tool turret
Optional configuration:
-SYNTEC/FANUC CNC controller
-Live tool
-Chip conveyor
-Bar feeder
