Product Details
Product Description
Product Description
WHO WE ARE:
Established in Year 2005, as an ISO9001/IS014000/OHSAS18001 accredited company and high-tech enterprise, Luoyang Deping Technology Co., Ltd (DP pipe machine) is specialized in manufacturing pipeline construction equipment and providing automatic welding solution onshore & offshore.
Our products comply with European Union safety regulations (CE) and have been supplied to more than 40 countries around the world
Customized machine services are available as per client’s specific requirement
Membership:
IPLOCA member (International Pipe Line & Offshore Contractors Association)

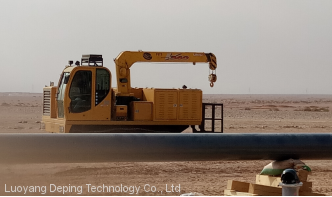

DPHP-100Z PAYWELDER
Our pay welder and other products have obtained CE certificates, which are issued by SGS, an internationally recognized certification company. The products meet the EU's technical safety standards, and are allowed to sale in the European Union market.
Direct connection mechanism of engine, generator and hydraulic pump, Patent design of DEPING ltd. (pn:ZL201020151740.2), which maximizes the power of the engine and reduces the failure in the same time.ngine Cummins Engine; Generator: Faraday, Hydraulic pump: Oil Research
MAIN FEATURES OF PAYWELDER
Chassis:
We adopts the standard chassis of the 10T excavator. The supplier also provide chassis to Zoomlion and Sany Heavy, the first-class brand in China
Hydraulic system
All the hydraulic parts are purchased from international first class company, for example pump from YUKEN(Japan); motor from
NABTESTCO(Japan), hydraulic hose and fittings from GATES(USA), hydraulic multichannel conversion valve from PARKER(USA). All these
first-class parts can ensure no leakage for the whole machine and smoothly operation.
Electric circuit and electric control cabinet
All electrical components are selected by SIEMENS (Germany), ABB (USA) or Schneider (Germany). The design and installation of the
line is based on military standard, and the whole machine failure is almost zero.
Covering parts
Stamp molding of 2.5 mm cold rolled steel plate, which can improve strong rigidity and corrosion resistance of the whole machine.
We adopt special paint for the covering part.
Easy to transport
Our unique embedded hook design makes it easier to load. Any crane with 10 tons capacity can load our pay-welder easily.
The outer width of the track is 2300mm, which is suitable for the transportation of various types of vehicles.
Flexible driving
Referring to the hydraulic drive design of Komatsu KOMATSU excavator, our paywelder can make minor move, which ensures safety during loading and operating in narrow space.
Product certification（CE, EAC for Russia）
PRODUCT SPECIFICATIONS
TYPE
| DPHP-80
| DPHP-100
| DPHP-Z100
|
WEIGHT
| 10300KG
| 10300KG
| 11200KG
|
SIZE
| 5405X2470X3005mm
| 5405X2470X3005mm
| 6190X3000X3222mm
|
ENGINE
| TYPE
| QSB5.9-C170
| QSB5.9-C180
| QSB6.7-C215(QSC8.3-C215)
|
POWER
| 125KW
| 133KW
| 158KW
|
ROTATION
| 1500/2000RPM
| 1500/2000RPM
| 1500/2000RPM(2200RPM)
|
GENERATOR
| TYPE
| FD3A-4
| FD3C-4
| FD3C-4
|
RATES POWER
| 80KW
| 100KW
| 100KW
|
RATED CAPACITY
| 100KVA
| 125KVA
| 125KVA
|
OUTPUT POWER
| 3 PHASE/380V
| 3 PHASE/380V
| 3 PHASE/380V
|
OPERATING SYSTEM
| TRAVELING
| INDOOR HAND AND FOOT SYNCHRONOUS OPERATION LEVER
| INDOOR HAND AND FOOT SYNCHRONOUS OPERATION LEVER
| INDOOR HAND AND FOOT SYNCHRONOUS OPERATION LEVER
|
GENERATING
| INDOOR POSITIONING CONTROL
| INDOOR POSITIONING CONTROL
| INDOOR POSITIONING CONTROL
|
LIFTING
| OUTSIDE OPERATING LEVER
| OUTSIDE OPERATING LEVER
| OUTSIDE OPERATING LEVER
|
WALKING SYSTEM
| TRAVEL SPEED(FORWARD/REVERSE)
| 2.8/4.6KM/H, DOUBLE SPEED, INFINITELY VARIABLE SPEED 2.8-4.6/H
| 2.8/4.6KM/H, DOUBLE SPEED, INFINITELY VARIABLE SPEED 2.8-4.6/H
| 2.8/4.6KM/H, DOUBLE SPEED, INFINITELY VARIABLE SPEED 2.8-4.6/H
|
GRADE CAPACITY
| 30°
| 30°
| 30°
|
GROUND PRESSURE
| 45KPA
| 45KPA
| 39KPA
|
PRESSURE FL UX
| 28MPA/180L/MIN
| 28MPA/180L/MIN
| 28MPA/180L/MIN
|
CHASSIS
| MIN GROUND CLEARANCE
| 439MM
| 439MM
| 439MM
|
TRACK SHOE WIDTH
| 600MM
| 600MM
| 600MM
|
LIFTING EQUIPMENT
| MAX LIDTING WEIGHT
| 3200KG
| 3200KG
| 5580KG
|
LIFTING RADIUS
| 2000-5320MM
| 2000-5320MM
| 8000MM
|
PRESSURE FLUX
| 20.6MPA/25L/MIN
| 20.6MPA/25L/MIN
| 31.5MPA/30-45L/MIN
|
TYPE
| 360 ROTATION TELESCOPIC BOOM
| 360 ROTATION TELESCOPIC BOOM
| 400 KUNCKLE BOOM
|
