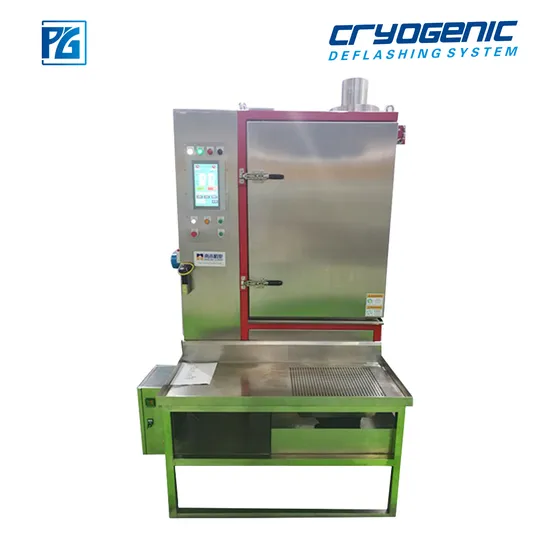

Pg-120t Cryogenic Rubber Part Deflashing Machine, 120L, Silver SUS304, Red Strip

Product Description

Introducing the PG-120T Cryogenic Deflashing & Deburring Machine (120 Liter) - the cutting-edge solution for efficient deflashing!
Product Description Revolutionary PROCESSING PRINCIPLE
As temperature decreases, rubber/plastic parts undergo hardening, brittleness, and crystallization, gradually losing their flexibility. At brittle temperatures, parts break easily under external force. Typically, the flash of molded products is thinner than the product itself and becomes brittle sooner in low temperatures. Leveraging this principle, the cryogenic deflashing machine operates precisely when the flash is brittle, while the products retain flexibility. High-speed projected special plastic media strike the flashes, effectively removing the brittle burr without damaging the product. This ensures the removal of flashes while preserving the integrity of the product.
Innovative Product Features
FUNCTIONALITY
Our machine excels in removing the flash from small rubber and plastic parts, including O-rings, gaskets, and other molded components.
Utilizing advanced cryogenic processing technology, the flashes are first frozen and then eliminated by high-speed projected polycarbonate media. This significantly enhances the surface quality of molded rubber and plastic parts.
Detailed Product Specification / Models
Versatile APPLICATIONS
A. O-rings and irregular rubber parts of various materials and sizes.
B. Components for micro electronic products.
C. Precision elastomeric parts for varied uses.
D. Precision injection-molded plastic components.
E. R & D prototypes and part runs.
F. Die-cast products, including zinc, aluminum, and magnesium alloys. Our Advantages Distinctive FEATURES
High efficiency: This machine can replace approximately 60-80 workers for flash removal.
High precision: It can eliminate small and hardened flashes that are unmanageable by hand, enhancing product precision.
Cost-effective: It offers a lower cost alternative compared to manual processing.
Comprehensive SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-120T
MACHINE PHOTO
SIZE(L*W*H)	1200*1250*2200MM
WEIGHT	1000KG
POWER	Ac380v 50Hz
ELECTRICTY	8Kw*3Ph
TEMPERATURE	-130 - +50ºC
PRESSURE	0.5-0.7Mpa
BARRAEL CAPACITY	100L or 120L
EFFECTIVE CAPACITY	40L`
WHEEL SPEED	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen
OPETATION MODE	Touch Screen
FRAME	SUS304
WHEEL DIAMETER	AL φ350mm
BLASTING SPEED	143.3m/s

Streamlined OPERATION PROCESS Notable FEATURES
High efficiency: Capable of substituting 60-80 workers for flash removal.
High precision: Removes tiny, hardened flashes that manual workers cannot, thus improving product precision.
Economical: Provides a cost-efficient solution compared to manual labor. Installation Instructions Detailed MACHINE PICTURES
State-of-the-Art FACTORY AND WORKSHOP
Modern WORKSHOP Facilities Successful Installations
Installations in POLAND AND USA.
Country Shipped
Local Installations

---
