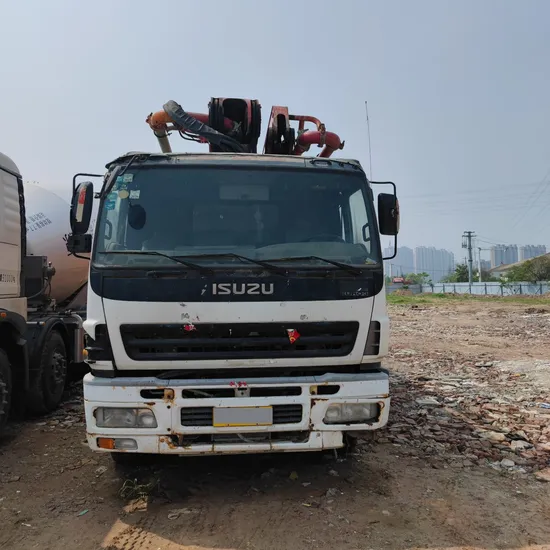

Used Truck-Mounted Concrete Pump Sy 46m Concrete Pump Truck

Product Description

Product Description
Product Introduction: SY SY5313THB 46-Meter Concrete Pump The SY SY5313THB is a 46-meter truck-mounted concrete pump designed for efficient and precise concrete placement in construction projects.
Parameters of the whole machine:
Classification Item Unit Value

General Specifications	Model	-	SY5313THB
General Specifications	Total Length	mm	11520 / 11995
General Specifications	Total Width	mm	2500
General Specifications	Total Height	mm	3990
General Specifications	Total Weight	kg	32800

This pump boasts a range of advanced features that enhance safety, efficiency, and ease of operation.
This data sheet provides a comprehensive overview of the SY SY5313THB 46-meter concrete pump, highlighting its capabilities and specifications to assist in making an informed decision for your construction equipment needs.
Key Features:
1. Intelligent Buffer Control System: Reduces reversing impact for smoother operation and enhanced safety.
2. High Pump Displacement: Capable of reaching up to 170m³/h, with stepless adjustment to meet various working conditions.
3. Computer Energy-Saving Control System: Saves an average of 20% energy, reducing operating costs and promoting environmental sustainability.
4. SYMC Dedicated Controller: Ensures more reliable system operation, providing peace of mind for operators and project managers.
5. Customizable Design: Options for rear extension, side rails, and material choices to tailor the pump truck's appearance and functionality.
6. Specialized for Concrete

Product Parameters
Classification Item Unit Value

General Specifications	Model	-	SY5313THB
	Total Length	mm	11520 / 11995
	Total Width	mm	2500
	Total Height	mm	3990
	Total Weight	kg	32800
Engine Specifications	Engine Model	-	6WF1A
	Engine Brand	-
	Engine Power	kW	265
	Engine Rated Speed	rpm	1800
	Engine Max Torque	N·m	1422 at 1100 rpm
	Engine Displacement	L	14.256
	Fuel Tank Capacity	L	380
Pumping System Specifications	Theoretical Conveying Volume (High/Low Pressure)	m³/h	120 / 170
	Pumping Concrete Pressure (High/Low Pressure)	MPa	12 / 8.3
	Theoretical Pumping Times (High/Low Pressure)	times/min	18 / 26
	Delivery Cylinder Diameter	mm	260
	Delivery Cylinder Stroke	mm	2000
Hydraulic System Specifications	System Pressure	MPa	200
	Delivery Pipe Diameter	mm	125
	End Hose Length	mm	3000
	End Hose Diameter	mm	125
Boom System Specifications	Maximum Boom Height	m	46
	Maximum Boom Reach	m	28.8
	Maximum Boom Radius	m	41
	Boom Swing Angle	degrees	360
	Number of Boom Sections	-	5
	Boom Section Lengths	mm	9255 / 7060 / 6890 / 9220 / 9580
	Boom Spread Angles	degrees	90 / 180 / 180 / 240 / 240
Support Leg Specifications	Front Support Span	mm	8820
	Rear Support Span	mm	8540
Other Specifications	Drive Type	-	6×4
	Chassis Model	-	CYZ51Q
	Chassis Manufacturer	-
	Operating Weight	kg	32800
	Hydraulic Oil Tank Capacity	L	900
	Water Tank Capacity	L	600
