Welcome to visit

A3 Size 3050 I1600 I3200-U1HD Head Bottle Phone Case Pen Golf PVC Card UV LED Flatbed Dtf Transfer Sticker Printer with Laminator Available

US$3,800.00
1-2 Sets
US$3,500.00
3-9 Sets
US$2,499.00
10+ Sets

Basic Info.

Model NO.
UF-300 Series
Plate
Lithography Printing
Structure
Platen Press
Color & Page
Multi-Colour Printing Press
Usage
Paper Printer, Label Printer, Card Printer, Cloths Printer, Crystal Sticker, Phone Case, Glass, Pen, Ottle
Automatic Grade
Automatic
Printing Interface
USB3.0
Printing Speed
3 Minutes for A3 Size
System Supported
Windows 7, Windows 10, Windows XP
Printhead
1 I3200-U1HD or 2 I1600-U Heads
Printing Size
A3 Size 30X50cm Max (A2 Size Available)
Color
Cmyk/ Cmyk+W/Cmyk+W+Varnish
Roll and Laminate Device
Available. Support to Do Roll to Roll UV Dtf Print
Benefit of Printer
Multi-Functional, High Stability, High Accuracy
Advantage of Supplier
Factory Direct Sale. After Sale Is Guaranteed
Max Media Thickness
20cm
Bottle Printing
Available
Vacuum Platform
Available
Software
Maintop (Standard) / Flexiprint (Optional)
Model
Sinocolor UF-300X Series UV Flatbed Printer
Transport Package
L745mm W745mm H730mm / 110kg
Specification
L670mm W565mm H635mm / 90KG
Trademark
SinoColor 2pcs Heads UV DTF Flatbed Printer
Origin
China, Shanghai, Nantong
HS Code
8443322100

Packaging & Delivery

Package Size
106.00cm * 82.00cm * 87.00cm
Package Gross Weight
130.000kg

Product Description


Product Description

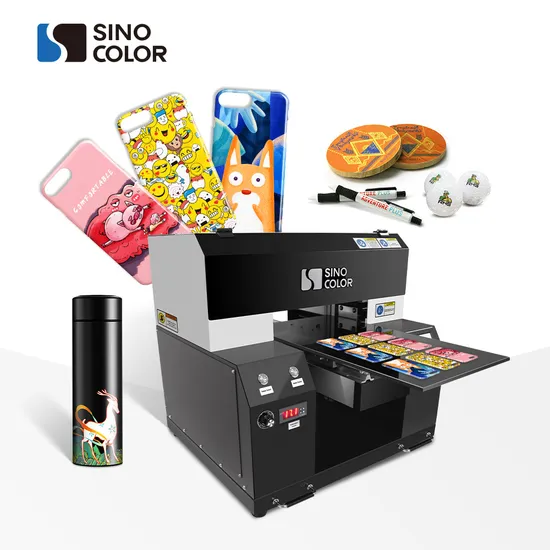

A3 Size 3050 i1600 i3200-U1HD Head Bottle Phone Case Pen Golf PVC Card UV LED Flatbed DTF Transfer Sticker Printer With Laminator Available
1. Compact design,Simple and decent
2. Maximumly use mold to produce machine components to achieve best resolution.
3. Sinocolor System. Much more professional and more stable than desktop modified printer. Control the color freely.
4. White ink circulation system equipped. Decrease problem caused by White ink precipitation.
Product Parameters
Model No. UF-300X (Plus) UF-600X (Plus) UF-300i (Plus) UF-600i (Plus)
Printhead 1 Epson i3200-U1HD Two Epson Economic printheads
Resolution 2400dpi MAX 1440dpi MAX
Max Speed 3 minutes for A3 size 6 minutes for A2 size 3 minutes for A3 size 6 minutes for A2 size
Print Head Height 20 cm Max
Printing Size 30 x 50 cm Max 42 x 60 cm Max 30 x 50 cm Max 42 x 60 cm Max
Print Direction Intelligence double sided
Print Method micro piezo print technology, intelligence drops transformation technology
Height Adjust Electric
Distance of Print Head Printing 1-3 mm (1 mm is the best)
Ink Color CMYK/ CMYK,White/CMYK,White,Varnish/CMYK,White,Pre-treating Liquid
Ink Supply System CISS
Ink Consumption 15-20 ml / square meter
Min Ink Drop Size < 1.5 PL
Interface USB3.0
Rip Software Maintop (Standard)/ FlexiPrint (Optional)
Working Environment Temperature 18-30 Celsius, Humidity 30-70 RH, Clean room, Low dust, Less sun light
Power AC 110/220 V, 50 Hz/60 Hz
Size&Weight L670mm W565mm H635mm /110KG L800mm×W840mm×H640mm/180KG L670mm W565mm H635mm /110KG L800mm×W840mm×H640mm/180KG
L1060mm W820mm H870mm /130KG L1150mm W920mm H770mm / 230KG L1060mm W820mm H870mm /130KG L1150mm W920mm H770mm / 230KG
