Liqiang 1.2-4.5mm China Top Copper Rod Rreakdown Machine with Annealer

Product Description

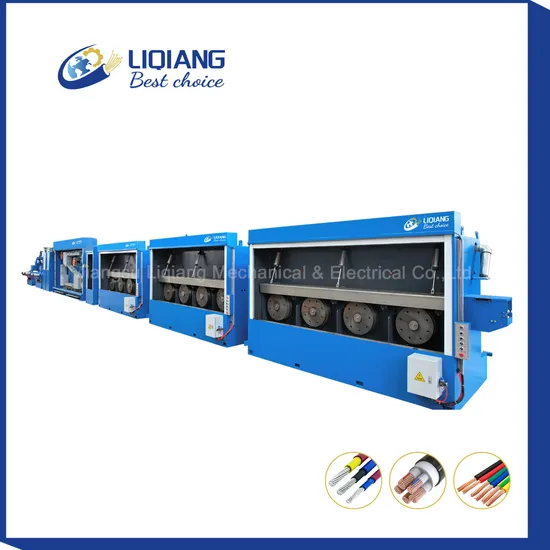

450/13-2DT Double Line Rod Breakdown Machine with Annealing (with Independent Motor )

Model	450/13-2DT
Inlet diameter	2*Φ8.0mm or 1*Φ8.0mm
Outlet diameter	Φ1.6 mm ~Φ4.0mm /Φ1.2 mm ~Φ4.5mm
Max. annealing speed	25m/s
Die size	Φ45*30mm
Drawing pass	13
Diameter of drum	Φ450mm
Drawing motor	75KW*12+60KW*1

Annealing wheel diameter	450mm
Annealing motor	30KW independent motor drive
Annealing voltage	AC55V
Annealing current	AC8000A
Annealing power	810KVA
Elongation	25%-35%
Storage wire quantity	9m
Total noise	80db

The horizontal and tandem construction;individual driven by motors;fast die change design;
Drawing capstans immersed lubrication and cooling can ensure high quality of wires;
The drawing machine is in sectional modular design;drawing passes can be customized;
Elongation of each die is adjustable,suitable for drawing Cu,AL,AL Alloy,etc.
Lower slip can reduce wear of capstans;problems of gear oil lubrication are reduced;Lower noise;
It can stop not running motors to save energy and increase drawing speed.
The tension feedback unit can be designed as per wire diameter,more suitable for drawing round and shaped wires.
The whole line is ethernet digital communication technology controlled.
Jiangsu Liqiang Mechanical & Electrical Co.,Ltd, is a professional wire and cable production manufacture with development design, whole plant planning and technical advice ,manufacture, installation, commissioning and after-sales service in one. Our main products are wire drawing machine, annealing machine, wire bunching machine and other related equipment for bare copper, copper alloy and stainless steel wire, etc.
We believe that perfect high-quality products only come from zero defect production process. Listrong has adopted the advanced production equipment and technology , scientific & standardized management system and strict testing standards to ensure international advanced level on quality ,structure, performance and appearance. A post-sales service team with versatility and high-efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products,well trusted and supported ,have been sold throughout China and Southeast Asia, the Middle East , South Africa and other regions.
Liqiang persisted in the principle of " quality wins market, integrity makes for brand" .We make each component with all our mind and energy and to meet multiple requirements all from clients' interests. We hope to create maximum value for the community as well as for clients.
Q: Are you a manufacturer or trade company? A: We are a real wire drawing machine manufacturer, we can support online and offline factory inspoestion anytime. Q:Where is your factory located? A: Our factory is located in Dongtai City, Jiangsu, China. It is not so far from Shanghai airport and Nanjing airport.
If you want to visit our factory, we may pick up you from airport. Q: How many years are your company engaged in the wire drawing machine? A: More than 20 years. We have our own technology develop department and testing department. Q: Can you send your engineer to my country for machine installation, worker training? A: Yes, sure. Our engineers have been to more than 60 countries before. They are very experienced. Q: What's the guarantee time for your machines? A: 12 months since the date of dispatching from our factory. Q: Can you export and supply the customs clearance documents we need? A: We have much experience for exporting. We will arrange all the customs clearances in advance for you. If you are interested in our machines,
please feel free to contact us now,
We will provide you professional solution with reasonable price.

---
