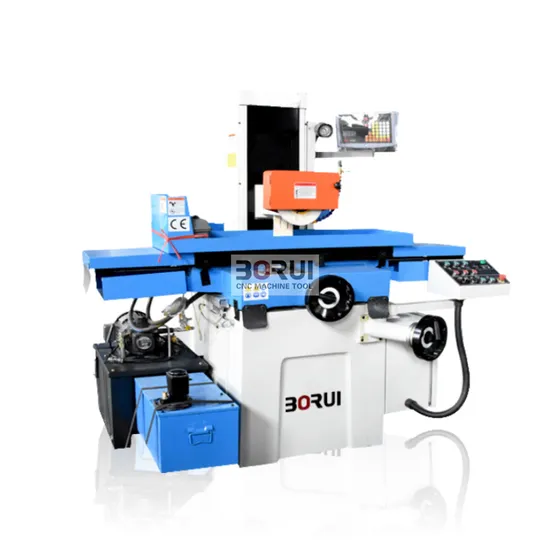

Hydraulic Surface Grinding Machine (MY820)

Product Description

Hydraulic Surface Grinding Machine (MY820)
Product Application
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
The main specification:

Model					MY820
Working table	Table Size (L× W)			mm	480×200
	Max movement of working table(L× W)			mm	530×220
	(number×width)			mm	1×14
Grinding wheel	Max distance from spindle center to table surface			mm	450
	Wheel Size(Outer diameter×width×Inner diameter)			mm	φ200×20×Φ31.75
	Wheel speed	50HZ		r/min	2850
		60HZ			3440
Feed amount	Longitudinal speed of working table			m/min	3-20
	Cross feed(front and rear) on handwheel		Per revolution	mm	2.5
			Per graduation	mm	0.02
	Vertical(up and down) feed on handwheel		Per revolution	mm	1.25
			Per graduation	mm	0.01
Motor power	Spindle motor			kw	1.1
	Coolant pump motor			W	40
Hydraulic system	Hydraulic motor			kw	1.5
	Working pressure			Mpa	3
	Oil tank capacity			L	80
	Max flow			L/min	18
Working precision	The parallelism of working surface to base level			mm	300:0.005
	Surface roughness			μm	Ra0.32
Weight	Net			kg	850
	Gross			kg	950
Overall dimension(L×W×H)				mm	1680x1140x1760
Package dimension(L×W×H)				mm	1630x1170x1940

The main performance characteristics:
1. the Small Surface Grinding Machine Adopt the exceeding precise class7(P4 level) ball bearing for spindle.
2. theSmall Surface Grinding Machine Bring transmission by synchronous belt, operating simple and convenient
Product Dtails
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.

---
