Basic Info.
Certification
ISO 9001:2000, CE
Type
Roller-Bending Machine
Transport Package
Standard Export Wooden Case
Specification
2060*640*1050mm
Production Capacity
2000sets/Year
Product Description

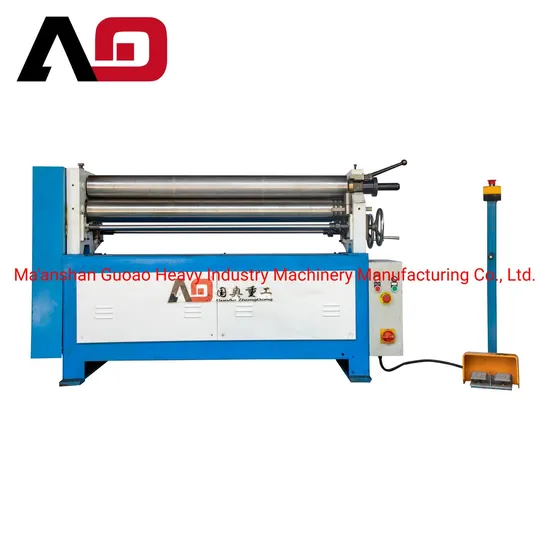

Product Description This series of winding machine is suitable for the winding work of the plate. When rolling, the metal sheet material can be rolled into a cylinder shape first, and then welded, can be made into ventilation, water, smoke exhaust, exhaust and other functions of the pipeline, hardware products.
This product has the characteristics of small size, simple structure, easy operation, light weight, easy to move, etc. (by its can be made into universal shaft type according to customer requirements).
Processing features: roll plate is suitable, parts deformation uniform, after processing, parts can be fully stress diffusion, not easy to make the surface production hardening phenomenon, can maintain the original performance of the plate, greatly better than the manual beating into the pipeline, so widely used.
Structure
1. roller
2. upper roller locator
3. emergency stop switch
4. lower roller adjust wheel
5. side roller adjust wheel
6. foot pedal swtich
Specifications
| Model | Thickness | Width | Motor | Dimension |
| W11G-4*1500 | 4mm | 1500mm | 2.2kw | 2060*640*1050mm |
| W11G-3*2000 | 3mm | 2000mm | 4kw | 2530*640*1050mm |
| W11G-3*1300 | 3mm | 1300mm | 1.5kw | 1800*640*1050mm |
| W11G-4*1300 | 4mm | 1300mm | 2.2kw | 1800*640*1050mm |
Workshop
Packing & Loading
>>
