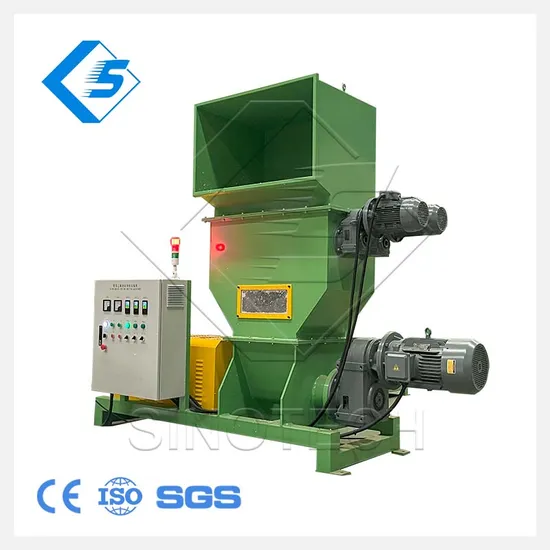

EPS Recycle Equipment Foam Machine Hot Melting Foam Thermocol Block Machinery for Waste Foam

Product Description

Product Description
EPS Foam Hot Melting Machine Description of Styrofoam compactor machinery eps foam press recycling machine:1.Twin shaft crushing blades. This machine adopts manual feeding, the material will be crushed by blades on the twin shaft, then through the screen conveyed into the barrel of the main machine.2.The screw of the main machine can compression, then extruding them and hydraulic blade cut them to pieces for easy storage and transportation.3.The shapes of the products can be designed according to customers' requirements. Suitable Products:
It is suitable for EPP EPE XPS PUR EVA EPS plastic foam and polystyrene foam, such as foam box, EPS foam board, EPS foam fast food box, etc.
Main features: 1.Capacity:50-200kg per hour.
2.The compression ratio could arrive at 1:90.
3.It has excellent performance, compacting dimension, low noise, easily and convenient operating and maintenance.
4. Ingenious designed feeding hopper and exquisite structure of blades.
5.With ceramic heaters on the extruder, it could make the material good plasticizing and long life working.
6. The melted material comes out from extruder, it could be collected by steel tank to get material cube block, but also could be cut by automatic pneumatic cutter to get small material blocks. The size of the material blocks could be adjusted.
7. The density of the block can reach 500-600kg per cubic meter. One container can load more than 20 tons material.
Product Parameters

Model	GL-HM 100	GL-HM 200	GL-HM 400
Screw diameter	Φ100 mm	Φ180-120mm	Φ180-120mm
Screw length	1050mm	2500mm	2500mm
Screw speed	150 r/min	110 r/min	110 r/min
Capacity	40-50Kg/h	80-120Kg/h	180-200Kg/h
Screen hole diameter	40mm	50mm	50mm
Extrusion center height	300mm	366mm	366mm
Motor power	5.5kw	15kw	22kw
Heating power	4kw	10kw	14kw
Crusher motor power	1.5kw	2.2+2.2kw	2.2+2.2+2.2+2.2kw
Crusher blades quantity	9sets	9+10sets	9+10+9+10sets
Crusher rotation speed	110 r/m	110 r/m	110 r/m
Size(L*W*H)	1410*1085*1600mm	2030*1400*2050mm	3400*1880*2550mm
Weight	1000kg	1800kg	2500kg

Detailed Photos
Working principle:The twin shaft are two parallel shafts with blades, they running in different rotation direction. Each shaft has blades and driven by the gear box, to crushing the EPS material then the material will get throught the sreen into the barrel. The material will be processed by the high speed rotary screw to the barrel, then the high press to reduce the volume density.
For the environment:1.EPS is uniquely recyclable - all manufacturing waste can be fully reprocessed as can the products at end-of-life.2.EPS is comprised of 98% air and therefore only 2% polystyrene making it a highly efficient use of raw material.3.Although EPS is derived from a non-renewable resouce - oil, it represents less than 0.1% of crude oil usage.4.As EPS is highly energy efficient - the energy saved over the lifetime of an insulation panel.
Raw Material
Final Product
Seller Recommendation
EPS Foam Cold Compressor Recycling Machine Company Profile
Certifications


FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping. Q2:What about the payment way? A2:TT,L/C at sight or ****** trade assurance. Q3:If you can extend the guarantee time? A3:Yes.Our guarantee time is 24 months.Double times of other factory because we have strong confidence for our product. Q4:If you will send engineer coming to our factory to install and test the machines? A4:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you. Q5:If you have CE,SGS,ISO certificate? A5:Yes,except these,if you also need other certificates,we also can help to apply. Q6:If we buy your machines, can you offer us wear-out spare pats? A6:Yes,We provide our high quality machine 2 years' guarantee,and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing. Q7:The voltage,if you can design according to our request? A7:Yes. Q8:If you support ****** trade assurance pay? A8:Yes.100% support. We are professional Packaging Foam Plastic Board EPS EPE EPP EVA Cold Pressing Machine manufacturers.If you want to know more detailed information, please feel free to contact me:+86 13915728281

---
