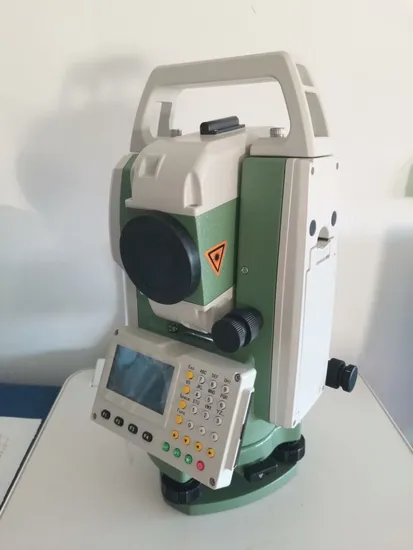

China Brand New Foif Total Station Rts102r10 Reflectorless Total Station

Product Description

FOIF China Brand Total Station RTS102R10 Reflectorless Distance 1000M Improved from TS650, dual-axis compensate
IP66 Protection
Alphanumeric Keyboard
LCD display with 6lines x 20 characters
Power long reflectorless measuring distance 1000m
Bluetooth cable -free connection ( factory optional )
Compact new design;
Dual-axis compensator;
alphanumeric keyboard;
trigger key;

Product Parameters

Model	RTS102	RTS105
Angle Measurement
Reading system	Absolute Encoder
Angle Unit	1"
Display resolution	1"/5"/10"
Accuracy	2" 5"
Telescope
Magnification	30X
Field of View	1°30'
Minimum Fousing Distance	1.0m
Length	156mm
Image	Erect
Objective aperture	45mm
Compensator
compensator	Dual-axis
Range	±3'
Accuracy	1"
Distance Measurement (with Reflector)
Single Prism	1 to 5000m
Reflective Sheet /RP60	800m	800m
Accuracy	2mm+2ppm
Measuring Time	1s/0.5s	1s/0.5s
Distance Measurement (Reflectorless)
Reflectorless Range R600	600m	600m
Reflectorless Range R1000	1000m	1000m
Accuracy	3mm+2ppm
Measuring Time	1.5s-5S, Max. 20s
Communication
Memory	Approx.120000 points, support SD card(max. 16GB)
Interface	USB/RS-232C/Bluetooth (factory optional)
Data transfer software	FOIF Geomatics office (FGO)
data collector	F58, fully rugged PDA (optional)
Operation
Dimensions	175*178*340mm
Weight (including batteries)	5.1kg
Display	LCD, 6 lines *20 characters (96*160 dots)
Keyboard	2 sides Alphanumerical key board
CPU	32Bit
Laser Plummet
Laser class	class 2/ IEC60825-1
Accuracy	1mm/1.5m
Laser spot brightness	adjustable
Laser wave length	635nm
Optical Plummet (factory optional)
Accuracy	0.8mm / 1.5m
Image	Erect
Magnification / Field of View	3x/4
Focus range	0.5m to infinite
Environmental
Operating Temperature	-20ºC+50ºC(-4F~+122F)
Storage Temperature	-40ºC+70ºC(-40F~158F)
Temperature & Pressure	Manual input
Dust & Waterproof (IEC60529 standard)	IP66
Power Supply
Battery Type	3400mAh Li-ion Rechargeable
Output Voltage/ Capacity	7.4V(DC)
Operating Time	Approx. 26 hours(at +20) (single distance measurement every 30 seconds)
Charger	EDJ6-LI(100V/240V)
Charging time	Approx. 4 hours

Company Profile:Shanghai Magcach Technology Co., LTD is a company to provide professional surveying instruments and surveying service,and with rich experience in export trade business . Our company mainly line in all kinds brand survey instruments ,such as GNSS RTK GPS,Total Station, Auto/digital level, Optical /electronic theodolite, Laser distance meter, Handheld GPS,Surveying accessories, Surveying software, etc.
And we keep good cooperation with surveying accessory manufacturer. The Company's employees graduated from engineering.
We not only supply the Survey Instruments and accessories to our products ,we also supply the after sale and the technic Support. We will take the responsibility on the quality of our products .FAQ:
1. How long we guarantee quality?
Our main products like Auto level, Theodolite, Total Station,Gnss rtk have one year warranty, And we sure the products will be free from maintenance within warranty period If it is not man-made damage,and accessories with 6 month warranty
2.What can you buy from us?
Auto/digital level, Theodolite, Total Station,Gnss rtk,Laser level,Laser distance meter, Echo sounder and surveying accessories like tripods,ranging pole,prism,bipod,staff ,etc
3.What repair service can we provide if products get problem?
For small issues like missing or damaged part, key board, please send us the photos, we will send the required part and related instructions to you for free;
For big issues in one year warranty like EDM board, main board issue. We could only ask you to send the instrument back to us. Normally we will have it fixed in 10-14 working days and send back to you. You and we shall take care of the corresponding shipping cost on each side. And the big issues out of one year warranty, the customer should be responsible for all the cost.
4,What payment term we support?
TT, Western union,Money Gram,Pay in cash,Aplipay,****** Assurance Trade
5, How will we prepare before shipment?
All products will have been strictly quality checked in factory before sending out.Usually, we will send out the products within 3-5 working days after the payment confirmed and the buyer are responsible for the tax and/or duty charged by their country
