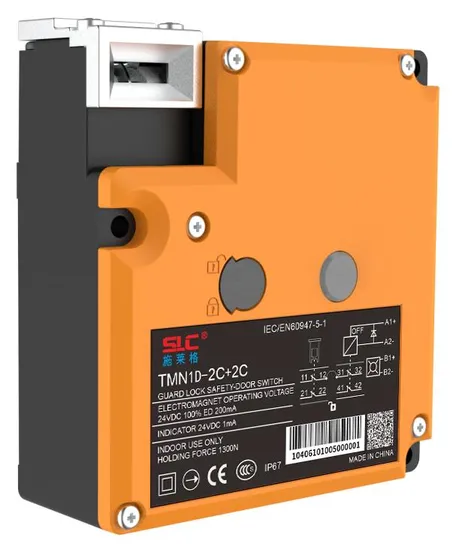

TMN series compact and lightweight door interlock

Product Description

TMN series security interlock is the most commonly used door interlock technology.
They use a key mounted in the opening of the switch body to detect the movement of the protective door.
With its compact and lightweight form factor, diverse contact configurations, and locking function, security interlocks are often the lowest cost solution.
Moreover, due to the use of flexible keys, it improves its misalignment tolerance, so it has a wide range of applications.
The TMN series safety interlock allows the switch head to be rotated 4 times at a 90° Angle, the key can be inserted into the switch at 7 different positions, and the electromagnet can be selected to work with power or power off, providing a variety of different options for how the switch works and how it is installed on the protective door.
This increases the flexibility of the switch, making it suitable for use on a variety of doors.

Technical parameters
Security level
Standard	EN60947-5-1,GB14048.5
B10D	800000 times
Authentication	CE,CCC(CQC)
Mechanical life	More than a million times
Electrical life	More than 500000 times			Resistive load 250VAC/3A
Environment
Enclosure rating		Ip65
Operating temperature		-10~+55ºC(Prevent icing, do not freeze)
Ambient humidity		Less than 95%RH
Electrical characteristics
Rated insulation withstand voltage(Ui)			300V
Protection level against electric shock			Class I(I Double insulation)
Pollution degree (use environment)			3(EN60947-5-1)
Impulse withstand voltage(EN60947-5-1)			2.5KV
Contact contact resistance			Under 25mΩ
Insulation resistance			Above 100MΩ
Rated open heating current (LTH)			10A
Conditional short-circuit current			100A
Contact spacing			2.5mm
Usage type
Load category			AC-15			DC-13
Rated operating voltage(Ue)			240V			24V
Rated operating current(Le)			3A			2A
Operating characteristics
Perform the minimum anchoring force of the key					15N
Maximum clamping force					1300N
Maximum execution speed					0.05~0.5M/s
Maximum execution frequency					30 times/min
Minimum switching current at a specific voltage					10mA@5VDC

Products Certification
Our Factory
Q: Can i get some samples ?/Do you offer samples available?
A: Yes, we can provide sample, but the cost of the sample is paid by the customer, if you feel satisfied and have the next mass production order, we can deduct the cost of the sample.
Q: How is the warranty?
A:our warranty time is 18 months. If the product has quality problem within 18 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
Q:How about the quality of the products?
A:we have the certification of CE,CCC,CQC,EU,TUV,UL, and products Safety Level archived Ple,SIL,Type 4,Cat.4 etc.
Q: What is the quality guarantee?
A: We are an ISO 9001-2015 ,ISO 14001 -2015 certified manufacturer, we have strict quality control system. Besides calibration, each set product we also do aging test before shipment, so the quality is guaranteed.
Q: Do you have any products in stock? A: Depend on the order quantity.With two 400-square-meter warehouses and 4 production lines with a monthly output of 2.3 pieces, large orders can be delivered on time. Q: Can I be your distributor? A: Yes, Please get in touch with us,we are looking for distributors in oversea market.

---
