1.Product Information: | Aluminium/aluminum Sheet or plate for building ASTM STANDARD |
| Aluminium Alloy | Thickness
(mm) | Width (mm) | Length (mm) | Temper |
| A1050,A1060,A1070,A1100 | 0.15-200 | 20-2620 | 20-8000 | O,H12,H14,H16,H18,H22,H24,H26 |
| A3003,A3004,A3105 | 0.15-200 | 20-2620 | 20-8000 | O,H12,H14,H16,H18,H22,H24,H26 |
| A5052,A5005,A5083,A5754 | 0.15-200 | 20-2620 | 20-8000 | O,H12,H14,H34,H32,H36,H111,H112 |
| A6061,A6082,A6063 | 0.15-200 | 20-2620 | 20-8000 | T4,T6,T651 |
| A8011 | 0.15-200 | 20-2620 | 20-8000 | O,H12,H14,H16,H18,H22,H24,H26 |
| Standard Width | 914mm,1000mm,1220mm,1250mm,1500mm |
| Material process | CC AND DC |
| Customerize size | Size can be produced as per clients requirement |
| Surface | Mill finish ,Color coated(PVDF& PE),Stucco Embossed ,Bright Polish,Anodizing |
| Mirror,Brush,Perforated,Tread plate ,Corrugated etc |
| Quality Standard | ASTM B209,EN573-1 |
| MOQ per size | 2 tons |
| Payment Terms | TT OR LC OR DP at sight |
| Delivery time | Within 25 days after receipt the lc or deposit |
| Material Quality | Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents |
| scratches etc ,A+++ quality, production process passed sgs and bv inspection |
| Application | Construction ,Building,Decoration ,Curtain Wall ,Roofing,Mould,Lighting, |
| ship building,Aircraft,Oil Tank ,Truck Body etc |
| Packing | Standard export worthy wooden pallets,and standard packing is about 2 tons/pallet |
| Pallet weight also can be as per client's requirement |
2. production standard :
as per international standard ASTM OR EN standard ,
all chemical composition ,mechanical property ,size tolerance ,flat tolerance ,etc strictly as per ASTM OR EN standard
Chemical composition : | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al |
| Single | Total |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | _ | 0.05 | 0.03 | 0.03 | _ | ≥99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | _ | 0.05 | 0.03 | 0.03 | _ | ≥99.6 |
| 1100 | Si+Fe:0.95 | 0.05~0.40 | 0.05 | _ | _ | 0.1 | _ | 0.05 | 0.15 | ≥99 |
| 1200 | Si+Fe:1.00 | 0.05 | 0.05 |
| _ | 0.1 | 0.05 | 0.05 | 0.15 | ≥99 |
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | _ | _ | 0.1 | _ | 0.05 | 0.15 | Remainder |
| 3105 | 0.6 | 0.7 | 0.3 | 0.30~0.8 | 0.20~0.8 | 0.2 | 0.4 | 0.1 | 0.05 | 0.15 | Remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50~1.1 | 0.1 | 0.25 | _ | 0.05 | 0.15 | Remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | 0.1 | _ | 0.05 | 0.15 | Remainder |
| 5083 | 0.4 | 0.4 | 0.1 | 0.40~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Remainder |
| 5086 | 0.4 | 0.5 | 0.1 | 0.20~0.7 | 3.5~4.5 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Remainder |
| 6061 | 0.4~0.8 | 0.7 | 0.15~0.40 | 0.15 | 0.80~1.20 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Remainder |
| 6063 | 0.2~0.6 | 0.35 | 0.1 | 0.1 | 0.45~0.90 | 0.1 | 0.1 | 0.1 | 0.05 | 0.15 | Remainder |
| 6082 | 0.7~1.3 | 0.5 | 0.1 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.2 | 0.1 | 0.05 | 0.15 | Remainder |
| 8011 | 0.5~0.9 | 0.6~1.0 | 0.1 | 0.2 | 0.05 | 0.05 | 0.1 | 0.08 | 0.05 | 0.15 | Remainder |

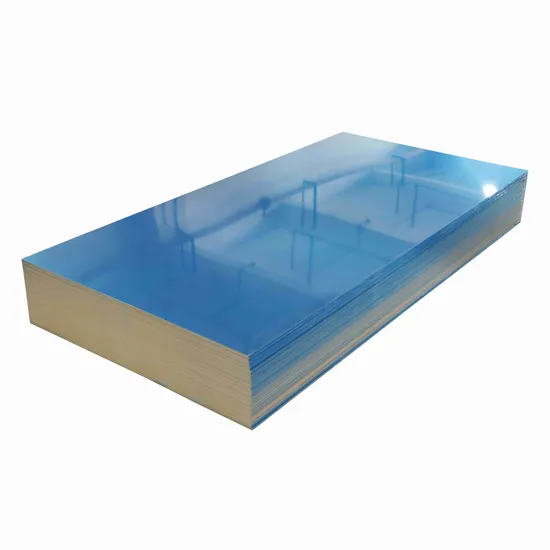

3 .Aluminium sheet and packing picture :
4.Quality Assurance :
We have strictly quality control system from aluminium ingot to finish aluminium products,to make sure that only qualified product will be deliveried to clients .And our production process is approved by SGS and BV .
ISO certificate NO : 00118Q38006R0M/4400 as per ISO 9001;2015
5.Factory Information:
Guangdong Guangyun New material Co.ltd (Guangyun Aluminium) is the largest aluminium manufacturer in south part of china ,with monthly production volume about 15,000 tons of different aluminium sheets and coils, varies from 1xxx series to 8xxx series ,and we can produce any size according to client requirment with width up to 2620 mm.We produce both CC AND DC.
