Welcome to visit

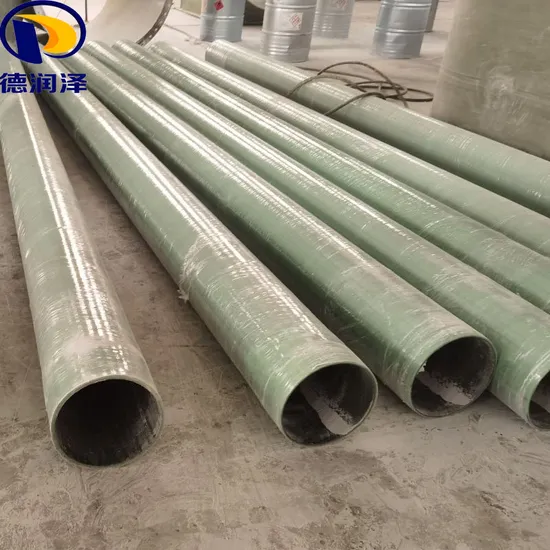

FRP GRP Above Ground Supply Liquid Water Pipe

US$30.00
10-99 Meters
US$28.00
100+ Meters

Basic Info.

Thickness
Custom
Usage
Environmental Protection
Product Categories
FRP Pipe
Molding Method
Winding
Material
Fiberglass
Fiber Type
GFRP
Type
Polyester FRP
Application
Transport Gas,Liquid
Certificate
ISO
Connection
Flat,Spigot and Socket,Flanged
Length
3m-12m
Transport Package
Nude Packing or Bulk Cargo
Specification
DN25-DN4000
Trademark
OPCT
Origin
Hebei, China
HS Code
3917290000

Product Description

FRP GRP above ground supply liquid water pipe
Product Description
FRP pipe is in the filament winding process, using quartz sand layer will strengthen, make its have sandwich structure, such as reducing the comprehensive cost of the pipeline, and improve the overall strength and stiffness of the pipeline.

High pressure FRP pipe is a new type of nonmetallic pipe. In its making, glass roving, soaking by low viscosity but strong adhesive bonding resin,winds around mould at the preset angle and layers. It has to be cured,released from the mould and then processed. Excellent corrosion resistance, high endurance, light weight and high strength are among its special properties

Specification
Product name
Fiberglass / FRP pipe
Material composition
FRP / GRP
Length
6meter or according to clients'request
Usage
Cold and hot water supply, Heating system
Trade terms
EXW, FOB, CNF, CIF
Eco-friendly
Yes
Sample provide
No
OEM
Yes
Shipping way
By sea/land


Product show
Fiberglass pipe types
FRP process pipe FRP clip sand pipeline FRP composite pipe
FRP gas pipe FRP cable pipe FRP insulation pipe
FRP pipe jacking FRP high pressure pipe FRP spraying pipe

The type of pipe's coupling
1. Sole sealing ring socket coupling: suitable for medium pressure
2. Double sealing ring socket coupling: suitable for high pressure
3. Socket coupling: suitable for high pressure and heavy-caliber piping
4. Spigot coupling: suitable for high, medium and low pressure piping and fittings' coupling
5. Socket '0' type sealing coupling, nylon clapper '0' wedged lock which mainly apply to axial strength piping
6. Flange coupling: suitable for medium and low pressure piping

Characteristics
frp cable protection pipe
1. High strength, Used for the carriageways directly buried, don't need concrete cover, Can speed up the construction progress
2. Flexibility, Resistant to outside pressure and damage
3. Electric insulation, flame retardant, heat resistant performance is good, can be use for a long time in 130 degrees heat and not easy deformation.
4. Resistance corrosion, long service life, can resist acid, alkali and salt corrosion; can be used more than 50 years.
5. Smooth inner wall, protect cable
6. Sealing circle and socket connection, easy to handling
7. Light weight, easy to construction, saves cost
8. Applicability range is wide: Glass fiber reinforced plastic cable protection tube is buried cable laying in the protection work, also used in Cable Bridge, high demand across the occasion.
FRP GRP pipe
1. Light weight, high strength, and convenient transportation and installation.
2. Excellent corrosion resistant, it can be used under the condition of seawater environment for long time.
3. Good low temperature resistant, it can be used under the condition of -45°C-120°C for long time. 4. Smooth inner surface, its roughness coefficient is 0.0084, good conveying, and no fouling, no secondary pollution, decrease th e cost of the running & maintenance.
5.Fire retardant, it meets IMOA.753(18) Level-3 fire resistance class.
Specifications
Application

FRP cable protection pipe 1. City power grid construction and renovation project
2. City reconstruction project
3. Aviation airport project construction
4. Industrial zone, residential project construction
5. Traffic road, bridge construction

GRP/FRP craft pipe
1. Chemical and sewage treatment lines
2. High/middle/low-pressure liquid delivery lines
3. Brine injection lines
4. Tertiary oil recovery injection (polymer,CO2,NaOH, etc.)lines
5. Oil tank inlet and outlet lines, oil station used lines
6. Oil production wells, treatment wells (brine, chemical fluid or sewage), and injection wells (brine, CO2, polyester, heat and etc.).
Related products
Company information
HEBEI DONGDING CHEMICAL TRADE CO.,LTD is made up of several manufacturing enterprises, is a high tech enterprises that collection of sale for project consulting, designed and developed, engineering design, materials purchasing, transport of goods, equipment installation and training debugging, and has passed ISO 9001:2015 international quality management system certification, our company is the national foreign trade, the general administration of customs approved the company has import and export right.
We mainly produce potassium sulfate production equipment,FRP tank production equipment,FRP pultruded products(include FRP Square tube/Rectangular tube /Round tube /Rod / U channel / I beam / Flat / Angle /Decking panel /Plum blossom tube /Ladder carling /Ladder crossgirder ),FRP pipe, FRP tank,FRP septic tank,FRP water tank,FRP grating,Cooling tower,FRP scrubber,Cable tray,FRP cover,FRP flange,FRP rock bolt,FRP handrail and so on,Looking forward to your visit and communication!
Packaging & Shipping
>> Packing: First,use wood pallet,then use plastic film,then put them into the container.
>> Delivery: Within 30 days after the payment was received.
FAQ

1. Q: Are you Trading Company or Manufacturing Factory?
A: We are both manufacturer and trading company. We have our own factory for almost seven years, and we have better service of overseas customers. Welcome to send your inquiry!

2. Q: How about the Delivery time?
A: 60days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft
container. Welcome to ask for the detailed delivery time according to your order quantity!

3. Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.

4. Q: What is about the payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay.

5. Q: Can you do OEM for me?
A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
