Equipo Avicola/Galpon Avicola/Comederos Automatico PARA Pollos

Product Description

equipo avicola/galpon avicola/comederos automatico para pollos 1. Main feeding line system:Transport feed from silo to each hopper automaticly.
2. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.
3. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
4. Fans and cooling pads system: Keep the poultry house air cool and fresh.
5. Environmental control system: Automatically control the temperature, humidity, light, etc.
6. Heating system: Fuel can be gas or oil. Keep the house warm during winter.
7. Fogging system: Regularly disinfect the poultry house.
Main systems of equipo avicola/galpon avicola/comederos automatico para pollos:
1.Main feeding line system:
Function:Main feeding line system can convey feed from silo/ manpower hopper to each feeding line hopper automaticly.A: Option 1: Silo B: Option 2: Manpower hopper1) Drive motor:Power: 0.75KW/1.1KW/1.5KW 380/220V three phase or 220V single phase 50hz/60hz.2) Delivery feeding system:Feeding capacity: 1400KG / h Maximum feeding length:60mRadius of bending pipe: R1500 ( inclinable angle: 30 degrees )Feed level sensor: import from Germany IFM
2.Automatic pan feeding line system:

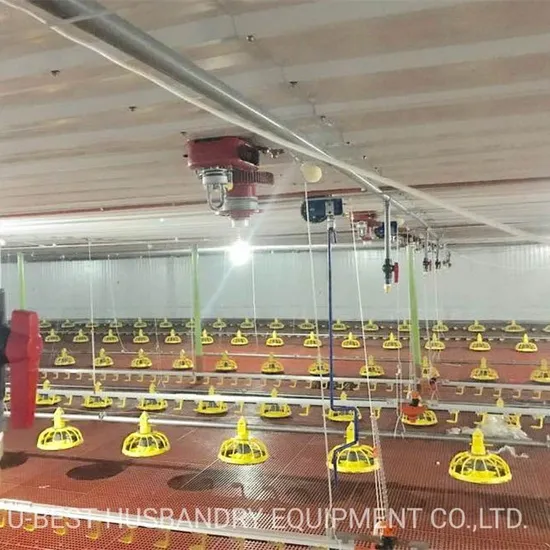

Automatic pan feeding line system consists of driving system, hopper, feed conveying pipe, auger, suspension lifting
system, anti-perching system and feed sensor. The main function of the system is to convey feed in the hopper into
each feed pan to ensure the eating of the broilers and automatically control open/close of the motor by the feed
level sensor to achieve the aim of automatic feeding.1) High-quality special driving reduction motorPower: 0.75kw/1.1kw/1.5kw, 380/220v three phase or 220V single phase, 50hz or 60hz2) V-shaped HopperBin Volume: 115L, Hopper volume: 38LMaterial: Hot-DIP galvanized sheet3) Feeding PipeDiameter of conveying pip: Φ 45mmMaterial: Hot-DIP galvanized steel pipe with the zinc coating amount of more than 275 g/m2
3.Automatic nipple drinking line system
(1). Function:The system can provide clean and fresh water to broiler chickens steadily, the water will be out when birds
touch nipples.Our nipple's rod can be movable in 360 degrees, easy for chicken to drink.(2). Specification:1) Water line front system This front part is controller of water, it's main function is to adjust water supplying pressure and stabilize drinking volume, which is usually installed in control room, include:*Pressure regulating valve-make sure to supply stable water to drinking lines;*Filter-clean water and avoid blocking nipples;*Water meter-measure water usage volume.*Doser/Medicator-add medicine to drinking system automatically to prevent disease.2) Pressure regulator system
Good regulating stability, high switching performance;Water supply is sufficient&equality;Recoil cleaning with good cleaning result, save time and water;Good quality movable valve, easy to change.3) Nipple drinker lines: Lubing type nipple drinking system/Plasson type nipple drinking systemThe drinking line specification: 15 nipples/3m, 12 nipples/3mA.The nipples outside shell is made of high quality plastic, the inner rod is made of high quality stainless steel.a. All nipples are anti-corrosion, service life over 10 years.b. Double-sealing structure, avoids water leakage and its bad influence to chicken house.c. Birds can drink from 360 degrees, easier to drink.d. Meeting drinking demand of different-period chickens.B. The drip cup is single-arm design is more suitable for modern chicken raising idea.C. The square water pipe is lower possibility of water accumulation than round water pipe.
4.Ventilation system
(1). Function:The system controls poultry house inner environment, provides fresh air, proper humidity for your chickens, ensuring your broilers provide maximum production.(2). Ventilatioin system:a. Centrifugal shutter type exhaust fan:(We also could supply drop hammer fan, butterfly cone fan and hanging cow fan)b.Air inlets:Automatic control:
As per the request of difference chicken house pressure by controller, make the air inlet window open and off automatically.
5.Cooling pad system
Performance parameters:Length* Width: Thickness: it can be customizedFrame: Galvanized Steel, Aluminium Alloy and Stainless SteelColor: Brown, Brown&Green, Green, Black
6.Environment control system
Imported from Israel T607, T616, Image II/China brand UBT-2000 can set an optimum working modeaccording to the local climate and raising environment. This system saves the labor and the resourcesunder the condition of assuring the optimum growth.Environment controller, power distribution box, main&deputy control box are included in this system.
New type control box mainly including:
1.Environment controller Agrologic T607/T616/VIsion 24S or Rotem AC2000.
2.Alarm system
3.Temperature sensor
4.Humidity sensor
5.Negative pressure meter
6.Wind speed meter
7.Heater system
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different
growth stage. Hot blast heater of coal or diesel can heat the whole chicken house, gas brooder will
heat the day old chick. Please kindly confirm us which type you will use.
8.Curtain system
Our curtain is drop down system, including galvanized support pipe,pulley, nylon rope,curtain, winch,
Curtain system is designed for open poultry houses in high temperature districts. The curtains can replace
an entire wall or parts of the wall and are also operated as a ventilation system for the poultry house.
Good services for equipo avicola/galpon avicola/comederos automatico para pollos: 1. Poutlry farm design and construction. 2. Offer CAD layout drawing.3. Installation:two installation engineers will be sent to farm site guid installtion and give training forequipment operation.4.Quick response for after sale service.
Successful chicken farm project for equipo avicola/galpon avicola/comederos automatico para pollos:
We have lots of construction projects home and abroad, our sales volume in Philippine market is NO.1,we are the best and the most reliable supplier in this area, our company also have exported to the following area:Asia: Sri Lanka,Pakistan, Bangladesh,Palestine,Lebanon,Saudi Arabia, UAE, Qatar,Uzbekistan,Afghanistan,Vietnam, Philippines,Indonesia..Africa:Sudan,Algeria, Kenya,Zambia,Nigeria,Zimbabwe,Mozambique,Mauritius,Namibia,Mali..South America:Honduras,Costa Rica,Haiti,Dominican,Trinidad and Tobago,Colombia,Peru,Chile,Paraguay,Guyana..Oceania client:Australia,Fiji,Papua new guinea...European:Kosovo. Portugal, Spain, Italy...All get good feedback.In addition, our company is recruiting global agents, welcome you to join us with our utmost and warm expectation.If you need more specific information, please contact us , we will provide you professional and detailed solving plans.
Please contact U-BEST Ms Grace Wu !

---
