Frankincense Mangosteenpure Natural Extract Essence Men′s Essential Oil Extract Machine

Product Description

Remark :The drawing just for reference ,we can do according to client's URS Product Description Usage

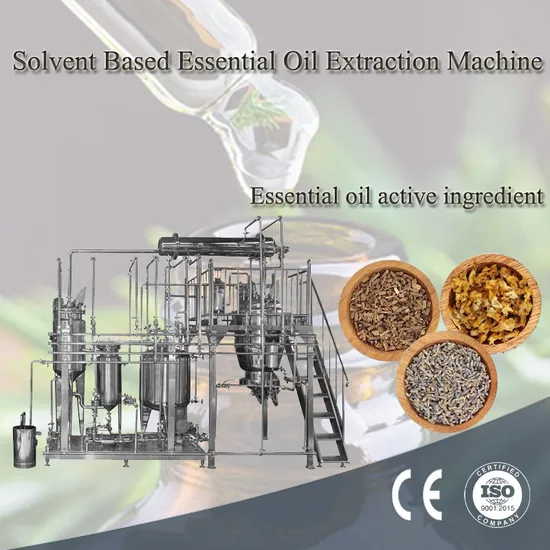

Essential oil extraction machine is using steam to distill raw material to extractor the active ingredient essential oil from the different raw material.
Essential oil extraction equipment is widely used in the extraction of conventional oils from flowers, grass, trees, leaves, slices, roots,seeds and animal materials
Reference raw material as below:

Flowers	Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage; achillea millefolium; osmanthus; peony; marigold; laurel; honeysuckle; violets.
Leaves	Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil.
Roots	Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
Grasses	Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose.
Wood	Sandalwood; cedar wood; rosewood; Birch; holly; camphor; melaleuca; sassafras.
Resins	Frankincense; myrrh; benzoin; fir tree; amyris; Elemi.
Bark	Cinnamon.
Citrus	Bergamot; grapefruit; lemon; orange; lime; tangerine .

Technical data

Model	TQH-0.5	TQH-1.0	TQH-2.0	TQH-3.0	TQH-5.0	TQH-6.0
Extraction distillation tank volume :L	500	1000	2000	3000	5000	6000
Condenser cooling area:M2	2.0	4.0	8.0	12	20	24
Cooler cooling area:M2	0.5	1.0	2.5	4.0	8.0	10
Steam consumption :kg/h	90	175	350	520	900	1040
Cooling water consumption:T/h	3.	6.5	13	19	30	38

Remark :above model just for reference ,we can do according to client's URS Company Profile
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)

---
