Product Description
Product Description

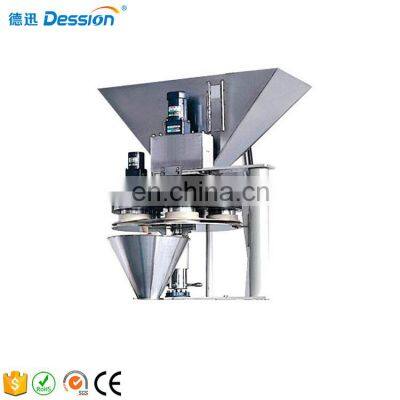

Volumetric Cup Measuring Dosing filling machine for food, DoserProduct DescriptionApplication:The Volume Cup Filling machine good in measuring and filling free flow granular ,like rice, nuts, dry fruits, plastic piece, etc. It also can be for free flow powder, such as seasoning, fine salts, etc. It can connect with Horizontal Packing machine and Vertical Packing machine (FFS). After adding the Pedal button, it even can work for Pre-made bags / Perform Pouch, Bottles, jars and else containers.Volumetrc Cup Filler Main Features:1. Single cup or 4/6 cups can be selected.2. Machine frame can be Full stainless steel or Painted mild steel.3. Cup(s) made by stainless steel or Nylon.4. Cups filling ranges can be adjusted through hand wheel.5. Regulation capacity of filling range is 1:2.Techinical Parameter:ModelDS-VCF1DS-VCF4DS-VCF6Cups QtySingle4 cups6 cupsControl partsAir cylinder & Air Motor & TransducerMotor & TransducerFilling range200-2000ml (By changing cups)200-1800ml (By changing cups)200-2000ml (By changing cups)Filling speed5- 40 times/min5-60 times/min5-60 times/minWeight90Kgs180Kgs200kgsDetailed Images:Match with Granules packing machine:Cups filling packaging systemEquipment components:1,single bucket conveyor; 2,cup measuring machine; 3,bagger;4,finished product conveyor ApplicationThis volumetric cup filling machine is very suitable for granule products like peanut, rice, seed, sugar, and so on. It is designed complying with GMP standard. The whole set includes hopper, rotary system(4 cups/6 cups), height adjustable work platform stand and control panel. Packaging & Shipping Packaging:1> All our machines will be packed according to export standard, solid fumigation wooden cases or solid non original wood package, all guarantee the safety of machines and avoid damage during transportation2> We pack our machines integrally, so no need to install while receiving, connect the electricity and working, very convenient.Shipping:Upon receipt of payment , delivery date will be in 20-35 working days,By Air, by Sea or by Express (DHL,UPS,TNT,EMS etc)Shipment cost will depend on destination, shipment way and weight of the goods.Company Information Dession is a leading manufacturer of Rotary pillow packaging macine, Vertical powder / granules / liquid / Sauce packaging machine, Automatic Feeding line, flowing packing machine and supporting facilities since 2005. Dession has successfully developed more than 80 kinds of packaging machines and related equipment, widely suitable for food, medicine, chemicals, Industry accessories, hardware and so on. Related Products Volumetric Cup Measuring Dosing filling machine for food, Doser
>>
