Mars S300 Wood Furniture Production Line CNC 4/3 Axis Woodworking CNC Router Machine

US$7,860.00-12,680.00 1 Set (MOQ)

Basic Info.

Model NO.
MARS S300
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Configuration
9kw Air Cooling Spindle + Linear Tool Change
Table Surface
T-Slot and Vacuum Working
Drive Motor
Ysakawa
Max. Traveling Speed
60m/Min
Table Structure
Thickened Vacuum Adsorption
Transmission
X/Y Axis Helical Rack & Pinion, Z Axis Ball Screw
Spindle
9.0kw Italy Air Cooling Spindle
Software
Ucancam / Artcam/Type3/Power Mill
Operating System
Taiwan Syntec Windows Control System
Warranty of Core Components
2 Year
Machinery Test Report
Provided
Max Travelling
80 M/Min
Max Working Speed
30 M/Min
Spindle Rotary Speed
0-24000 R/Min
Linear
Linear Type Tools Change Magazine
Transport Package
Plywood Case Package
Specification
1230*2450*200mm
Trademark
Mars
Origin
China
HS Code
8458110090
Production Capacity
500/Month

Product Description

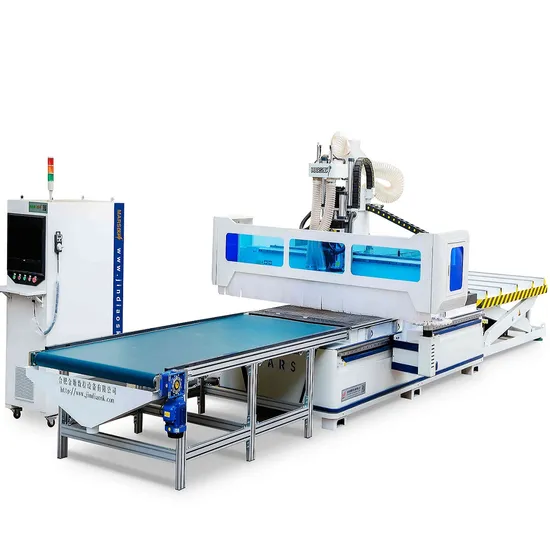

MARS-S300 Furniture Production Line Cnc Woodworking Router Machine
Configuration 9KW air cooling spindle + Circular tool change
Working Area 1300*2500*200mm
Transmission X/Y axis helical rack & pinion, Z axis ball screw
Table Structure Thickened Vacuum Adsorption Table
Drill bank 5+4 Drill bank
Max.Rotating Speed 0-24000rpm
Drive Motor Yaskawa
Max. Traveling Speed 80m/min
Max. Working Speed 30m/min
Spindle Speed 24000r/min
Working Voltage AC380/3PH/50HZ
Control System Syntec


If you have any questions, welcome to contact us.
