| US$78.00-130.50 | 10 Sets (MOQ) |

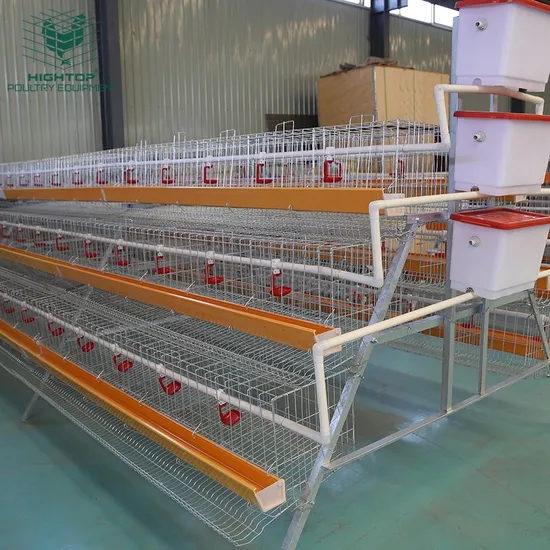

| The specifications of layer cage ("HT"-Hightop®brand; "A"- A shape; ""34"- 3 tiers 4 nests/doors/cell; "(L)" -Large size) | ||||||
| Model | Installation size | Nest/strip | Total nests | Size of the nest | chicken/nest | Capacity/set |
| HT-L-A34 | 1.88m L*2.3m W*1.5m H | 4 | 24 | 0.47*0.34*0.38*0.33 m | 4 | 96 |
| Half HT-L-A34(L) | 1.88m L*1.2m W*1.5m H | 4 | 12 | 4 | 48 | |
| HT-L-A44 | 1.88m L*2.4m W*1.95m H | 4 | 32 | 4 | 128 | |
| HT-L-A34(L) | 1.95m L*2.3m W*1.95m H | 4 | 24 | 0.49*0.38*0.38*0.33 m | 4 | 96 |
| HT-L-A44(L) | 1.95m L*2.4m W*1.95m H | 4 | 32 | 4 | 128 | |
| HT-L-A35(L) | 2.15m L*2.3m W*1.95m H | 5 | 30 | 0.49*0.38*0.38*0.33 m | 3-4 | 90-120 |
| HT-L-A45(L) | 2.15m L*2.4m W*1.95m H | 5 | 40 | 3-4 | 120-160 | |
| Note:If above size doesn't have the one you want,we can customize the cage size, if your order quantity is 20GP or 40 HC container | ||||||
| Materials | Q235 Low carbon steel wire | |||||
| Surface Treatment | Cold galvanized(7-10 years) | |||||
| Hot dip galvanized(15-20 years) | ||||||
| Marine grade(15-20 years) | ||||||
| Package | Full container loading: cage and cage stand have no package, some fittings are in plastic bags andcarton box | |||||
| Less container loading: packed in wooden box or pallet | ||||||
| Layer cage loading quantity (set) | |||
| Model | 20GP | 40GP | 40HC |
| HT-L-A34 | 130 | 270 | 290 |
| Half HT-L-A34 | 260 | 540 | 580 |
| HT-L-A44 | 100 | 210 | 225 |
| HT-L-A34(L) | 115 | 240 | 260 |
| HT-L-A44(L) | 90 | 190 | 200 |
| HT-L-A35(L) | 105 | 210 | 225 |
| HT-L-A45(L) | 80 | 170 | 185 |
