Basic Info.
Dimension
4970*1900*3100mm
Transport Package
Wooden Case or Container
Specification
IS09001-2008 TUV SGS SONKAP
Production Capacity
1000 Set/Year
Product Description

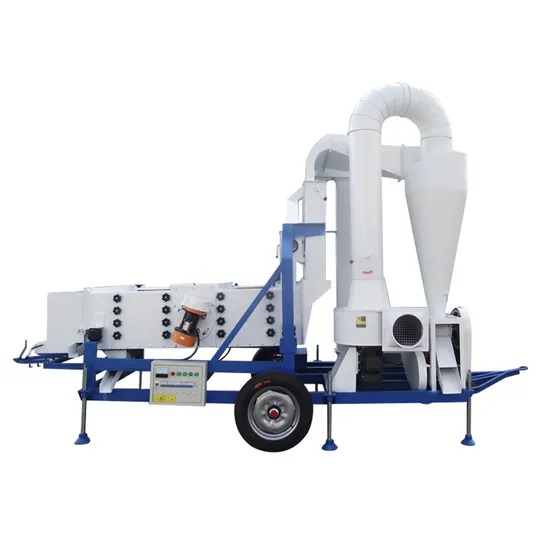

5XZC-5DH Bean Cleaning Machine
Feature of of 5XZC-5DH Bean Cleaning Machine
The 5XZC-5DH Maize Cleaning Machineequipped with Cyclone dust separator is professionally used for cleaning and grading seeds / grains.
Application of 5XZC-5DH Bean Cleaning Machine:
The 5XZC-5DH Maize Cleaning Machineis widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.
Working principle of 5XZC-5DH Bean Cleaning Machine:
Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.
The sieves has Rubber Balls inside for the self-cleaning.
| Model | Capacity(T/H) | Power | Weight(T) | Dimension(mm) | Remarks |
| 5XZC-3A | 3 | 8.5 | 1.3 | 3750*1950*2750 | Installed maize Thresher |
| 5XZC-5A | 5 | 12.74 | 1.6 | 4650*2120*3100 |
| 5XZC-10A | 10 | 20.93 | 2.2 | 5400*2450*3250 |
| 5XZC-3B | 3 | 4.25 | 1.2 | 3750*1650*2750 | Grain cleaning and grading functions |
| 5XZC-5B | 5 | 6.99 | 1.5 | 4650*1850*3100 |
| 5XZC-3C | 3 | 7.25 | 1.3 | 3750*1650*2750 | Installed Wheat Huller |
| 5XZC-5C | 5 | 10.99 | 1.6 | 4650*1850*3100 |
| 5XZC-7.5C | 7.5 | 14.85 | 2 | 5600*2100*3200 |
| 5XZC-25 | 20 | 20.95 | 2.9 | 5.82027E+11 | Double air cleaing system |
| 5XZF-7.5F | 7.5 | 10.1 | 1.8 | 5150*2160*3400 | Double air cleaing ,stone removing and Grading all in one |
FAQ:
1.Q Are you the factory?
A Yes, We are a professional grain cleaning machine manufacturers.
2.Q Can you ship to my country?
A Yes, no problem.
We can ship your cargo to worldwide.
3.Q How long does the cargo to delivery to my address?
A It takes about 25-35 workdays to arrive your address by sea.
4.Q Do you help to install the machines?
A Yes, no problem.we will send our senior engineers to take charge the installation, test running, and training local operators.
Contact Person: Mr. Sam Lian
Mobile number:0086-15131639008
>>
