High Precision Tck46A Small Slant Bed CNC Lathe

Product Description

Product Description

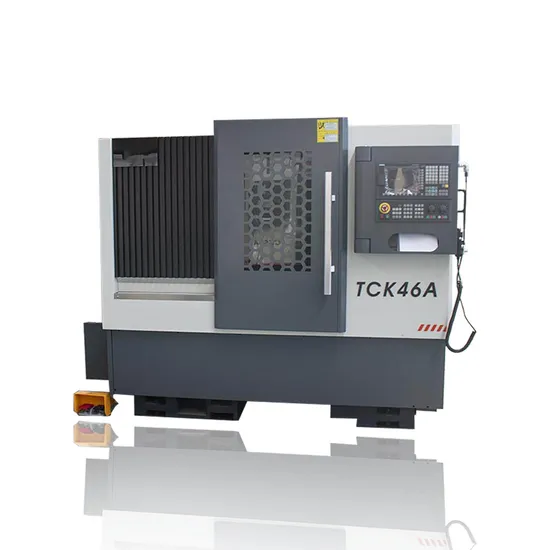

High Precision Tck46A Small Slant Bed CNC Lathe
Realistic photos
Product features: Highest accuracy Taiwan linear guide ways Higher speed spindle unit ,optional homemade spindle Higher rigidity cast iron Integrated automatic lubrication One-piece casting slant bed cnc lathe Application : The machine is suitable for automobile, motorcycle, electronics, aerospace,oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient. Product Parameters
Main technical specifications:

Main technical specifications	Specification	Unit	TCK46A
	Max.swing over bed	mm	460
	Max.swing over cross slide	mm	260
	Max. Processing length	mm	350
	Max. Bar capacity	mm	45
	Max.processing diameter of plate type of workpiece	mm	400/320
	Spindle nose type		A2-5
	Spindle bore	mm	56
	Spindle speed range	r/min	50-3500
	Main motor power	kw	7.5
	Chuck form		Hydraulic chuck
	Chuck size	inch	8
	X axis rapid traverse	M/min	24
	Z axis rapid traverse	M/min	24
	X axis servo motor torque	N.m	7.5
	Z axis servo motor torque	N.m	7.5
	X axis travel	mm	240
	Z axis travel	mm	400
	Guide rail type		linear rail
	Tool post type		Horizontal 8/12 station
	Tool shank size	mm	25x25/dia.32
	Tailstock type		hydraulic
	Tailstock quill dia.	mm	70
	Tailstock quill travel	mm	80
	Tailstock quill taper		MT5
	Total rated power	kw	11
	Total rated current	A	23
	Machine weight	kg	3000
	Machine dimension	mm	2500x1700x1890

Detailed Photos

---
