Plastic PE PP HDPE PVC PPR Pipe Making Machine

Product Description

Product Description

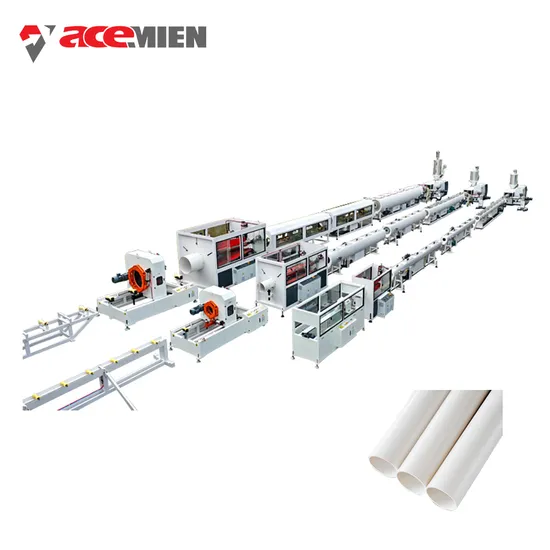

U-PVC drain pipe, water supply pipe and C-PVC cable production extrusion line
Application:
PVC series plastic pipe production line is mainly used to produce every size of pipe in the area of agricultural water supply system, pavement of cable, etc. This machine consists of twin conical(parallel)screw extruder, vacuum forming tank, haul-off unit, material tumbling frame, etc. Twin screw extruder and haul-off unit adopt imported A/C inverter, both vacuum pump and driving motor used the first-class brand.

Model	Pipe spec(mm)	Extruder	Max. output(kg/h)	Total power(kg/h)
PVC40 Dual	Ø16-40	SJZ-50/105	100-120	90
PVC63 Dual	Ø20-63	SJZ-65/132	200-250	100
PVC32 Four	Ø16-32	SJZ-65/132	200-250	105
PVC160	Ø50-160	SJZ-65/132	200-250	110
PVC250	Ø75-250	SJZ-65/132	200-250	120
PVC315	Ø110-315	SJZ-80/156	300-350	170
PVC450	Ø200-450	SJZ-80/156	300-350	180
PVC630	Ø315-630	SJZ-92/188	650-800	240
PVC800	Ø400-800	SJZ-105/216	900-1100	350

Machine list:

NO.	Machine	Qty
1	Auto loader	1
2	Twin screw extruder	1
3	Pipe moulds	1
4	Vacuum calibrating tank	1
5	Haul-off unit	1
6	Cutter	1
7	Stacker	1

Raw Material & Final Products:
Raw material: PVC resin+ other ingredients
Final Products: PVC water/sewage pipe
Pipe Diameter: 4-800mm
Main Electricity Brand:
Main Motor: SIMENS
Frequency control: ABB
Contactor: Schneider
Size of the whole production line: 25-30m
Power consumption of the production line(actually): 60-100kw
Advantage of PVC pipe machine:
1.Advanced design of screws supply powerful safeguard for the PVC plasticization.
2.Unique inside oil controlling temperature system adapts different technology.
3.Beautiful and practical stainless steel body for vacuum calibration and cooling units, unique multi-sections vacuum system ensures the stable sizing and cooling for pipes; Special cooling system improves the cooling efficiency; Particular water position, water temperature system make the machine more intelligent.
About Jiangsu ACEMIEN Machinery:
Jiangsu ACEMIEN Machinery Co., Ltd is specialized on plastic extrusion and recycling machinery manufacturing.
We have been producing and selling for over 6 years. Our equipment is exported to Asia, Africa, etc.
We have top-ranking Research and Development technology system and rich experienced technician team.
Our vision is to offer you the best and the most appropriate plastic extrusion and recycling solution, to offer you the most reliable technically and commercial service support.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.

---
