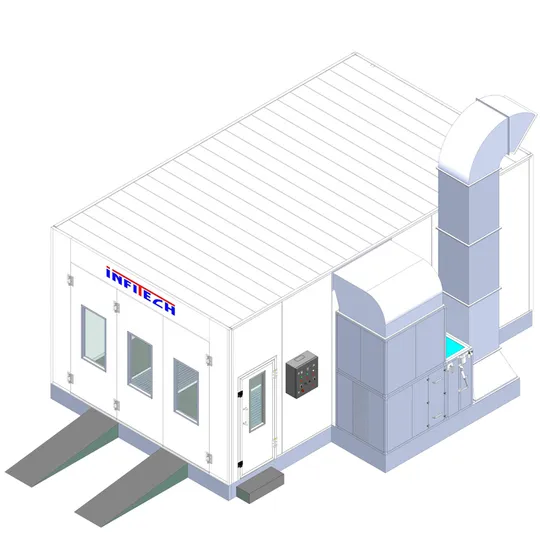

It-501-U55-Hinf Infrared Heating Auto Spray Booth Car Paint Booth

Product Description

Infrared Heating Paint Spray Booth Auto Spray Booth Auto Paint Booth
1.Advantages of control system of the IR heating system
A. Temperature control
B. Time control
C. Grouping control
D. Power adjustment
E. Slow start
2.Specification

DESIGN STANDARD		BS EN 13355:2004+A1:2009 BS EN 60204:2006+A1:2009
Cabin structure	Internal Dimension	6900×3900×2800mm (L×W×H)
	External Dimension	7010×5470×3350mm(L×W×H)
Basement	Base Design Forming	Two rows flat steel grids, three rows of metal anti-skip diamond Plate, floor(h):300mm, can not adjust
	Carrying capacity of grid	650kg/wheel
	Filter area	10.4m2
	Drive-in-ramps	X2 ; size: 2000*530mm
	Grid description	Size: 997X756mm, 40X3mm, pressed steel grating grille
Cabin	Cabin structure	Vertical wall plug
	Plenum height	400mm
Wall panel	Wall panel	50mm wall panel filled with heat-resistant rock wool
	Roof panel	Single layer galvanized plate bending forming
Door	Entrance Door	3200×2550 mm (W×H); 2 + 1 structure; Containing frame, filled with heat-resistant EPS
	Working door	800×2000 mm(W×H); frame structure working door; with safety glass observation window
Ceiling light	QTY and power	8 sets of light fixtures, each 4X36W, 1152W in total
	Lighting arrangement	On both sides
	Lighting description	IP55 lighting boxes, CE certified electronic rectifier, OSRAM lamp
	Brightness	> 800Lux
Filtration System	Pre-filter	G2 grade pre-filter plate filter
	Ceiling filter	F5 class filter cotton, Model SP-600G
	Bottom paint mist collecting	Fiberglass paint-resistance filters
Inlet System	Inlet fan	Adopt big impeller turbo fan
	Fan power and motor	5.5KW, 970 rpm, 380 V, 50 Hz
	Parameter of inlet fan	18000m3/h , 650pa
	Empty loaded air speed	+/- 0.18m/s
	Noise	<78 db
Infrared system	Drying System form	Infrared ray
	Power	10 units, 3X1KW/unit, total 30KW
	Arrangement	4 units on both sides, 2 units on back wall
Control system	Implementation of standards	BS EN 60204:2006+A1:2009
	Features	painting, baking, lighting, emergency stop switch, temperature display, failure indication
Special Item	Rated power:40KW

Sussessful Story
Factory image:
Packing and loading:
Service commitment
Before you buy
Product quality commitment:
1. Product manufacturing and testing have quality record and testing files.
2. Product performance test. Customers will be invited to attend the complete test procedure. Once product is qualified, then to package and delivery.
Product price commitment:
1. Use famous brand raw material to ensure high reliability and advancement of product.
2. Under the equal race condition, our company sincerely provides the most favorable price and won't be at the cost of reducing product performance and changing product components.

Are buying
Delivery time commitment:
Product delivery time: comply with customer's requirement. If the goods need to be finished in advance, we will arrange production and erection to satisfy the customers.

After purchase
After purchase service commitment:
1. Service purpose: fast, decisive, exact, considerable, thorough.
2. Service target: service quality to win customer satisfaction.
3. Service principle: the warranty is 12 months, the supplier freely replaces damaged parts caused by quality reason within warranty. Beyond the warranty, the supplier provides spare parts at cost. If the equipment damages caused by human factors, the supplier repairs or provides spare parts at cost. Our service people shall provide technical support in 24 hours as long as receive your inform.

---
