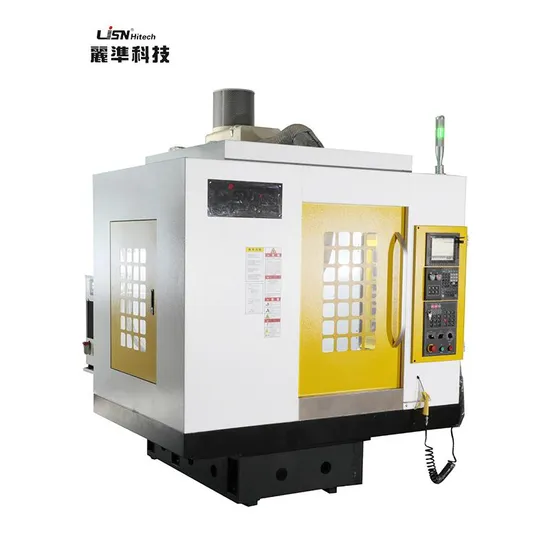

4axis 5 Axis Fanuc Drill Tap CNC Drilling Milling Machine Center TV600

US$24,200.00-29,500.00 1 Set (MOQ)

Basic Info.

Model NO.
Tv600
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
101-150mm
Automatic Grade
Automatic
Precision
High Precision
Certification
SGS
Condition
New
Worktable Size
720X400mm
Axis Travel
600/400/300mm
T-Slots
3X14X125mm
Spindle Speed
20000rmp
Transport Package
Wooden Box
Specification
1930x2450x2450mm
Trademark
LiSN
Origin
China
HS Code
8457101000
Production Capacity
10000pieces/Year

Packaging & Delivery

Package Size
193.00cm * 245.00cm * 245.00cm
Package Gross Weight
3000.000kg

Product Description

Product Description
The machine has a safe and convenient operation design. The back of the machine has a box-shaped design and it is equipped with a tank collecting box. The humanized space design and the wide operating door make the loading and unloading of the workpiece very convenient. This machine is also equipped with easy to use operating panel and hand wheel and high efficiency base chip washing system, making the work more efficient. The spindle motor and the spindle are designed to be directly connected, so there is no noise and vibration problem because there is no belt. The machine is equipped with a low-inertia spindle motor, which makes the acceleration time very short, from 0 to 12000RPM in one second. The Thermal Isolated Direct Drive System can effectively block the heat transmission of the motor to the spindle, and can significantly reduce the heat of the spindle.
Detailed Photos
Product Parameters
ITEM MODELS TV600
WORKTABLE (WIDTH*LENGTH) mm 720x400
DISTANCE BETWEEN T SLOTS mm 3x14x125
MAX LOAD BEARING OF WORKTABLE kg 200
X/Y/Z AXIS TRAVEL mm 600/400/300
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 130-480
SPINDLE HOLE TAPER - BT30
SPINDLE SPEED RANGE r/min 20000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT Optional
SPINDLE MOTOR POWER kW 3.7/5.5( Mitsubishi) /5.5/7.5(Fanuc)
X/Y/Z RAPID FEED SPEED m/min 48/48/48
MAX CUTTING FEED SPEED mm/min 1-20000
TOOLS MAGAZINE CAPACITY pcs 21
X/Y/Z POSITION ACCURACY mm ±0.005
X/Y/Z RE-POSITION ACCURACY mm ±0.003
MACHINE DIMENSION mm 1930x2450x2450

MACHINE WEIGHT
kg 3000

Standard Configuration for TV Series
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
Optional Configuration TV Series NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler.
Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
