Swing Motor Clawler Excavator 33 Ton

Product Description

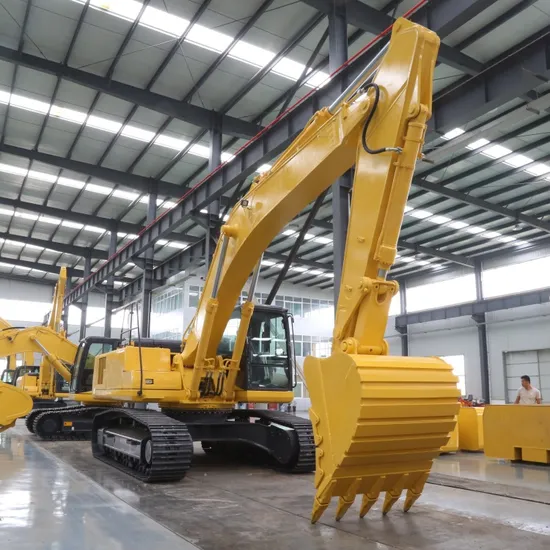

Swing Motor Clawler Excavator 33 Ton
The Everun ERE330 is designed for efficiency, built for stability and created for comfort. With a strong breakout force and exceptional power the ERE 220 offers a level of performance to handle a wide variety of tough excavating jobs with speed and efficiency.
2. Product Details
TechnicalSpecification

Engine					Travel System
Model		ISUZU-BB-6BG1TRP-02			Travel motors					KYB, Japan;
Type		Direct injection, water cooled, turbocharged			Support roller quantities					2×8
					Carrier roller quantities					2×2
No. of cylinder		6			Travel shoes					2X47
Bore and stroke		105X125(mm)			Travel speed					3.3/5.2(km/h)
Displacement		6.494L			Drawbar pulling force					134.8kN
Power output		120kw/2150rpm			Gradeability					70%(350)
Max. torque		582.5N.m/1800rpm			Ground clearance					465mm
Hydraulic System					Cab & Electrical System
Main Pump		KPM, Japan			Cab			Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system
Type		axial piston pump
Max. discharge flow		2x225(L/min)
Max. discharge pressure
Boom, arm and bucket		31.4/34.3 MPa			Voltage				24V
Travel circuit		34.3 MPa			Batteries				2X24V
Swing circuit		27.5 MPa			Battery capacity				240Ah
Control circuit		3.9 MPa			Boom, Arm & Bucket
Pilot control pump		Gear type			Boom cylinder				Ф120xФ85xS1335-L1870
Main valve		KYB, Japan			Arm cylinder				Ф135xФ95xS1490-L2075
Oil cooler		Air cooled type			Bucket cylinder				Ф115xФ80xS1120- L1680
Swing System					Refilling Capacity & lubrication
Swing motor		KPM, Japan			Fuel tank				410 L
Swing motor type		Axial-piston motor			Cooling system				26 L
Hydraulic oil released		Hydraulic oil released			Engine oil				22 L
Hydraulic disc brake		Hydraulic disc brake			Hydraulic oil tank				195 L Tank Oil Level
Swing speed		10.5r/min							295 L Hydraulic System
Bucket
Type					Backhoe bucket
Bucket capacity					1.0 m3 (SAE)
Bucket capacity scope					0.92-1.00 m3
Number of bucket teeth					5
Bucket width					1270 mm
Working Ranges
Boom length			5700mm
A	Max. digging radius		9982mm
B	Max. digging depth		6622mm
C	Max. digging height		9970mm
D	Max. dumping height		7000mm
E	Min swing radius		3203mm
F	Max. vertical wall digging depth		5900mm
G	Max. digging reach at ground level		9975mm
Digging Force (ISO6015)
Arm length			2925mm
A	Bucket digging force		139KN
B	Arm digging force		110KN
Overall Dimensions
A	Track grounding length		3480mm			I	Track shoe width				600mm
B	Track length		4174mm			J	Overall width				2810mm
C	Counter weight ground clearance		1075mm			K	Overall length				9650mm
D	Tail swing radius		2850mm			L	Overall height(to top of boom)				2780mm
E	Overall height(to top of cab)		3007mm			M	Track height				810mm
F	Revolving frame width		2736mm			O	Ground contact length				4780mm
G	Min Ground clearance		465mm			P	Track shoe thickness				10mm
H	Track gauge		2210mm			Q	Distance from swing center to tail				2850mm
Operating Weight and Ground Pressure
Operating weight includes basic machine;
Operating weight				22100 Kg
Ground pressure				47.1 KPa

Q: What Payment terms would you accept?
A: Normally we accept L/C, or T/T 30% down payment, balance to be paid against BL copy and loading pictures.

Q: What is your delivery time?
A: For standard machine, the delivery time is Within 25-35 days after receiving the down payment


Q: What services would you offer if I buy from you?
Our trained Professional service team offers high quality in-time service in a very friendly way. For a good customer experience, the content of pre -sales includes the recommendation on the right products basis on physical condition. All you have to do is to inform us your needs.
For After-sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 5 working days.
We have professional technician to support trouble clearing and maintenance.
For European customer, we built Everun Europe in Germany to supply the in-time technical support, and machine trial run and spare parts delivery.
Q: What is your main market?
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on.
Any questions, please feel free to contact me.
