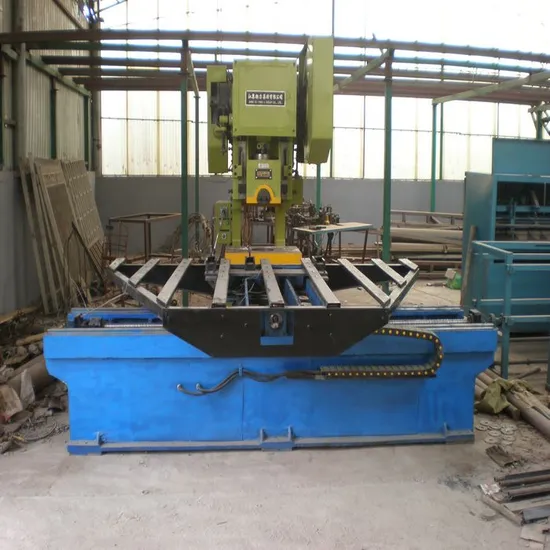

Anping Best Computer Perforated Metal Machine/Hole Pounching Mesh Machine

Product Description

Anping Best Computer Perforated Metal Machine/hole pounching mesh machine
The metallic material of pounding: iron plate, stainless steel plate, aluminum plastic composite panel,cuprum plate,aluminum plate, galvanized plate etc.
The shape of the hole: round hole, long round hole,square hole, trigonometrical hole,bulgy hole(scale hole), diamond hole, hexagonal hole, crossed hole etc..
Increased throat deep and working area.
I. Technical parameter

Pounding plate	1.5*3.0m
Pounding thickness	0.1-6mm
Mesh size	according the mold, ( mold price:USD1500)
Times of pounding	60-90/min
Pressure	250KN
Power	7.5KW
Space requirement	6*3m
Weight	8T
Parts including	pressure machine, feeding system, control system
Operation	computer control, software: Chinese--English

II. Other instruction about the machine and service
The warranty time: one year ( accessory parts)
Material of mould: tungsten steel or Cr12
Worker needed: one worker can operated two or three sets machine
All the accessory parts is GB national standard
The mould is manufacture according the customer's requested.
III. Detail for the pressure machine:

Model		SHP-25
capacity	KN	250
Nominal force	mm	2.5
Slide stock	mm	80
Stock times	/min	60
Max. Die height	mm	180
Die height adjustment	mm	70
Motor power	KW	2.2
Outside size	mm	1790×990×2288

The metallic material of pounding:
iron plate, stainless steel plate, aluminum plastic composite panel,cuprum plate,aluminum plate, galvanized plate etc.
The shape of the hole:
round hole, long round hole,square hole, trigonometrical hole,bulgy hole(scale hole), diamond hole, hexagonal hole, crossed hole etc..
Increased throat deep and working area.
Terms:

Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost. Install and training: offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day. Delivery time: 35days after advance payment Payment terms: T/T, 30% in advance, and the balance before delivery. Packing: waterproof material,control box: wooden case

Company profile

Anping ShengHua Metal Wire Mesh Machine Factorylocated in the famous "silk screen of the township" --- Hebei Anpingxian, is a metal screen and screen production sales of products and large enterprise is a concentration wiredrawing, Netting, and the Trade and Industry in one screen deep processing. We have been a "sophisticated quality, timely delivery, reasonable prices, excellent service" for the purposes of customer service, and in production principles, and won new and old clients of the masses. Company equipment, advanced processes, internal management science, quality assurance system, company-based, reputable, trusted by both domestic and foreign. ISO9001:2000 purchased products through international quality certifications, products Southeast Asia, the Middle East, the United States, Japan, Africa and other countries and regions.

Contact Us:

Tel:0086 18231052356

---
