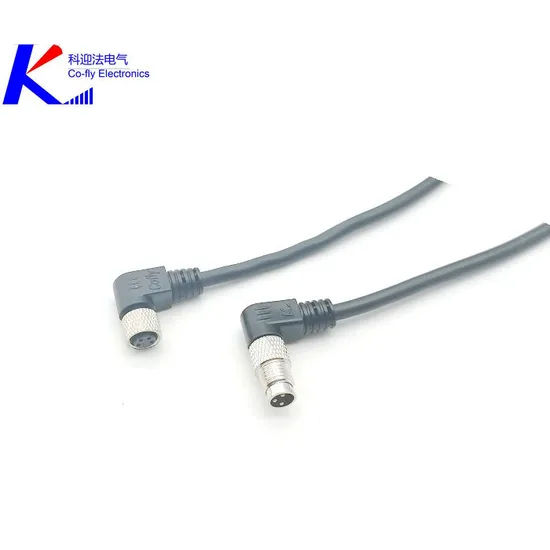

Profinet Waterproof and Dustproof 3 4 5 6 Core IP67 M8 Male and Female Plug Cable Proximity Switch Connector

Product Description

Profinet Waterproof and Dustproof 3 4 5 6 Core IP67 M8 Male and Female Plug Cable Proximity Switch Connector

Description of Waterproof M12 connector,IP67 M12 cable connector ,fix thread M12

Φ Waterproof M12 connector,fix screw with self-locking threaded joint,waterproof IP67 M12 cable connector.

Φ Protected from dust and water during immersion,resistance to many oils and chemical.

Φ Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.

Φ Satisfy all the requirements of sensor devices and actuator devices in automation technology.

Technical data of cable waterproof connector

Φ Standard :IEC 61076-2-101

Φ Coding : A,B,D

Φ Pins: 2~17 pin

Φ Ambient temperature:-20°C~+85°C

Φ Insulation resistance ≥ 100M Ω

Φ Degree of peotection : IP67 in locked condition

Cable/Connector specification

Φ Insert : PA+GF

Φ Contact:Copper Alloy with gold plating

Φ Overmold:TPU

Φ Cable Jacket:PVC or PUR

Φ Wire insulation:PVC

Φ Cable length:Option

All prices above are not accurate, please contact us for the latest prices as following:
Add: F2, Building 5, No. 1881 Lanyin Rd,
Songjiang High-tech industrial park, Shanghai, China
Contact: Nina Lai

1. Q: What is the necessary information needed for quotation?
A:The series(M5/M8/M10/M12/M23),coding,male or female,pin number,cable length.
2. Q: What is the minimum order quantity(MOQ)?
A:100 pcs or negotiatable.
3. Q: What do the certifications have?
A: ISO9001:2008, ISO14001, CSA. IATF16949.
4. Q: What does Co-fly can provide for the product' certification?
A: IP67, IP69, UL, CE and RoHS.
5. Q: Sample lead time?
A: One week.
6. Q: Volume order lead time?
A: 3-4 weeks.
7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
8. Q: How do you ship the finished product?
A: Based on the customer request.
9. Q: What kind of delivery terms or trade terms is available?
A: T/T, FOB ,EXW, FOB are all available.
