Product Details
Product Description
Product Description

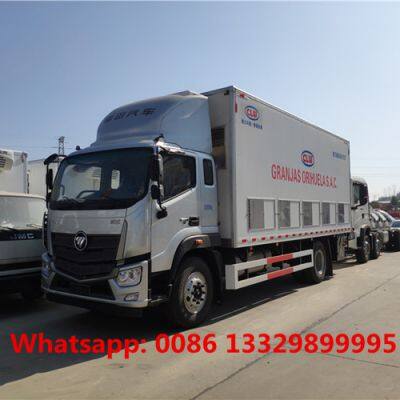

FOTON AUMARK S5 day old chicks transported truck, adopts FOTON AUMARK S5 one row and a half driver cab, 5150mm wheelbase, ISf3.8s5168 Cummins 168hp diesel Euro Ⅴ engine,9.00R20 rail tires, etc.
The technical parameters of upper part for FOTON AUMARK S5 day old chicks transported truck as below
The cold van body dimension of FOTON AUMARK S5 day old chicks transported carrier is 6670×2300×2400 (mm). The interior and exterior of the van box body with fiber reinforced plastics(FRP), and the middle insulation layers of 80mm thickness PU foam. There are sliding windows and waterproof blind-windows. The air will be from the van body floor ventilation
Left and right sides of the van body are with 12 sets 40*40 Mesh Plates for the cold air from the reefer. There are several 320*320 electronic ventilator fans mounted on the truck top and the rear door plate. Folding Shelves are for the two sides van body. Both Two sides of the van body with 5 blind-windows; while top mounted sky-window. Three lines of ventilator Air Ducts mounted on the van floor. The reefer choose high quality China made engine-powered refrigerator( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab). The heating system is selective.
Dayold chick transport box truck is mainly used to transport dayold baby chicks
The material and main structures are very similar to common refrigerated trucks, with FRP inside and outside plate, and middle material of box plate is PU foam insulation material, so it has very good thermal insulation capacity
The ventilation system is very important: blind window, electric fans, hot and cold air aisle, front air inlets
The heating system: for some cold areas, the box body will be equipped with heating device to warm the inside of box body
The cooling system: for the inside temperature of box body, commonly should be maintained at 10~20℃ which is the best comfortable temperature for dayold chicks. So refrigeration unit is a must, according to different size box and environment temperature in the country. Here for this 8.6m box, it is equipped with Thermo King T800 refrigeration unit. Of course, we also have Hanxue, Kaixue, Huatai, and other good brand refrigeration units
We can provide 4m to 9m baby chick transport box trucks
We can provide complete trucks and also we can provide box body with equipment only
Manufactured by our company, best production craft, sandwich structure freezer box, good thermal insulation capacity
Very light curb weight, fuel saving, and load more weight of cargoes
Truck box new craft, aluminum box edge reinforced, more strength
Optional refrigeration unit: -15℃~0℃, -5℃~0℃, 0℃~5℃, not only cooling, we also have heating unit
If you're interested in our day old chick transported truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.
main technical parameters of FOTON day old chick transported truck for 40,000 day old chicks transportation is as below
Product name
| Foton aumakr S5 4*2 LHD day old chick transported truck
|
Overall dimension(L*W*H)(mm)
| 9100×2470×3760
| Chick van box dimension(L*W*H)mm
| 6670×2300×2400 (mm).
|
Drive type
| 4*2 LHD
| Total mass
| 15795
|
Gearbox
| 8 speed transmission, manual
| Tyre specification
| 9.00R20 rail tyres *6+1
|
Power steering
| Yes
| Exhaust braking
| Yes
|
Air cut braking
| Yes
| Driver cab
| Foton Aumark S5 one row and a half driver cab
|
Engine
| ISF3.8s5168
| Emission standard
| Euro Ⅴ
|
Rater power
| 125KW/168hp
| Displacement (ml)
| 3760
|
Main technical parameters of day old chick van body
Performance and consumption
|
Heating system
| Watering system
| Without, client choose to install
|
Cooling system
| One refrigerated reefer
| China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab)
|
Ventilation system
| Air duct installed on the floor for air flow
| three line as the pictures show
|
Cold air ducts on the two sides of the van body
| two cold air ducts for the refrigerated reefer
|
Blind windows
| 5 sets of blind windows for the left and right van sides (as the pictures show); two bigger water-proof blind window at the front van plate.
Blind Windows: 5*2+2=12
|
electronic ventilator fans
| 1, 4 sets of electronic ventilator fans with sliding doors for the rear plate door; 5*2 sets of electronic ventilator fans for van top
Electronic fans: 4+5*2=14
|
Sky-window
| Top mounted sky windows*4 Sky-windows: 4*1=2
|
Dimension
|
Chick van box body
| Length
| 6670mm
|
Width
| 2300mm
|
Height
| 2400mm
|
Refrigerated van box
| Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices;
Aluminum-patterned baseplate;
|
>>
prepainted color coated galvanized steel coil for roofing sheets
>>
