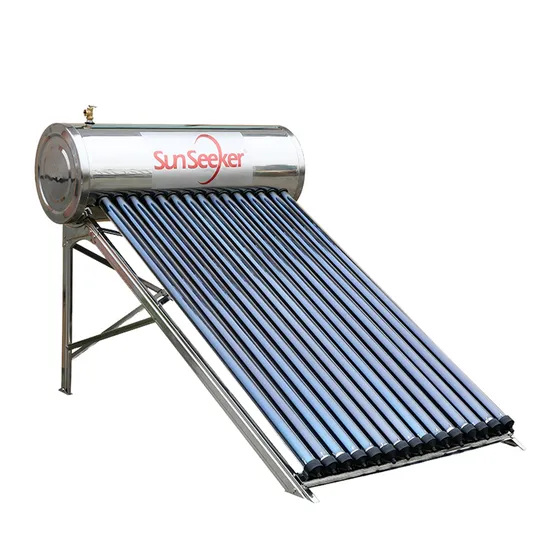

Wholesale High Pressurized Stainless Steel Wholesale Custom Household Solar Water Heater

Product Description

Our services
1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample 2.Shipping: 7 days for sample, 7-10 days for 20/40 container 3.MOQ: Sample is available 4.Warranty: 5 years guarantee for whole set solar water heater 5.Port of departure:Shanghai or Ningbo 6.Supply ability: 6000 sets per month 7.life time : more than 20 years Product Introduction

Material of inner tank	1.0mm-2.0mm thickness,food grade SS304/customization
Material of outer tank	0.31mm thickness, SS304/customization
Insulating layer	50mm thickness,45kg/m3 high density polyurethane foamed
Inlet and outlet hole	Male G 1/2,3/4...
Solar collector tube	3.3 Borosilicate glass with Cu-SS-ALN/ANL. coating
Thickness of glass tube	1.6mm/1.8mm/2.0mm/2.2mm
Vacuum tube tightness	P≤0.005 Pa
Bracket(frame)	1.2mm/1.5mm galvanized steel
Frame angle	9°/17°/20°/27°/45°/customization
Welding	Argon arc welding
Fastening pieces	Made of stainless steel screw
Tank capacity	From 80-400L
If you have customization needs, please contact us

Item no	Diameter of outer tank	Diameter of inner tank	QTY of tube	Diameter of tube	Length of tube	Effective light area	Tanks capacity	Application people	CBM
ZY-4B-5808	460mm	360mm	8	58mm	1800mm	0.83	80L	2	0.3
ZY-4B-5810	460mm	360mm	10	58mm	1800mm	1.04	100L	2-3	0.37
ZY-4B-5812	460mm	360mm	12	58mm	1800mm	1.25	120L	3	0.44
ZY-4B-5815	460mm	360mm	15	58mm	1800mm	1.46	150L	3-4	0.56
ZY-4B-5818	460mm	360mm	18	58mm	1800mm	1.87	180L	4	0.64
ZY-4B-5820	460mm	360mm	20	58mm	1800mm	2.08	200L	4-5	0.7
ZY-4B-5824	460mm	360mm	24	58mm	1800mm	2.5	240L	4-5	0.9
ZY-4B-5830	460mm	360mm	30	58mm	1800mm	3.13	300L	6	1
ZY-4B-5836	460mm	360mm	36	58mm	1800mm	3.75	360L	6-7	1.3
ZY-4B-5840	460mm	360mm	40	58mm	1800mm	4.17	400L	7-8	1.4
ZY-4B-5850	460mm	360mm	50	58mm	1800mm	4.69	500L	8-9	1.6

FAQ
Q: Are you a manufacture or trading company?
A: We are a manufacture special for solar water heater.
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What's the MOQ?
A: For trail sample order, 1pcs is available.
Q: What's your delivery time?
A: 7-10 working days after receipt of signed PI and down payment
Q: What is your package ways?
A: Generally, standard products with standard package. Inside: plastic foam. Outside: cartons
Q: Do you have other ADDITIONAL SERVICE?
A: YES We could offer other accessories (cover side/ support / solar water heater controller /silicon seal /rubber seal )
used on solar water heater system and the price will be much competitive.

---
