Plastic Bucket, Drum, Water Tank, Pallet Double Layers Making Blow Molding/Moulding Equipment

Product Description

PXB90APT

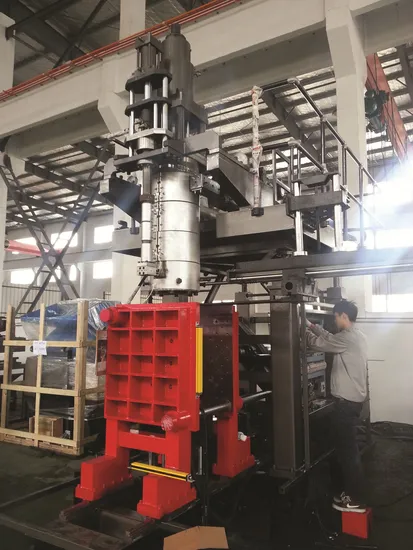

30L - 60L Multi-Layers Blow Molding Machine
Special Feature:
- High Speed Fixed Station For HDPE, PE, PP, PS Material Product
- Perfect Usage for 30L - 60L Bucket, Special Package Jerry Can, Toy, Pallet, Container, Tool Box, Auto parts, etc
- Multi-Layers Extruder with Transparent Line
- Quick Action Speed, Stable Running
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China
Air Valve	FESTO	Germany
Parison Controller	Moog	Japan
Servo Valve	Moog	Japan

Machine model		PXB90A-1PT
Material		PE,PP,ABS...
Max container capacity	L	60
Output(dry cycle)	pc/hr	500
Machine dimension(L×W×H)	M	5.7×2.6×4
Machine weight	T	15
Clamping Unit
Clamping force	kn	360
Mold platen size(W×H)	mm	960×980
Platen opening stroke	mm	450-1050
Platen moving stroke	mm	600
Max mold size(W×H)	mm	700×1080
Mold thickness	mm	460-600
Power
Servo oil pump motor power	KW	15
Servo pump displacement	L/MIN	100
Blow pressure	MPA	0.8
Air consumption	M3/MIN	1
Cooling water pressure	mpa	0.3
Water consumption	L/min	90
Average energy consumption	KW	40-45
Extruder unit
Screw diameter(outer layer/inner layer)	mm	70/70
Screw L/D ratio	L/D	24
HDPE Melting capacit for HDPE	kg/hr	130-160
Number of heating zone	zone	4×2
Screw heating power	kw	21.4×2
Screw fan power	KW	0.5
Extruder motor power	kw	22×2
Die head
Number of heating zone for single die head	zone	4
Heating power for single die head	kw	21.3
Max die-pin diameter	mm	350
Accumulator capacity	L	6.6(7.6)
(HDPE) Accumulator weight(HDPE)	KG	4.95(5.7)

Delivery Time:
- No later than 45 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

---
