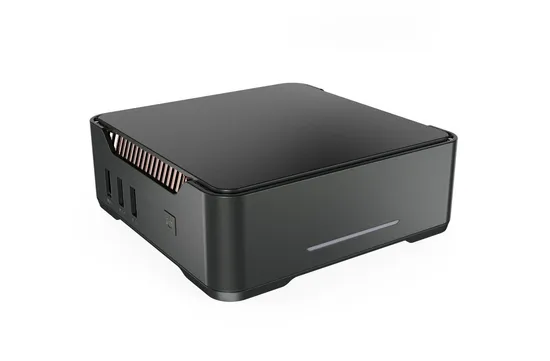

| Appearance |
| Type | Features | Spec | Optional |
| Product | Device | MINI PC | |
| Special | MINI PC, Ad Terminal Box | Optional |
| Device size | 130mm*130mm*47.5mm | |
| Case Material | Plastic | |
| Weight | Net Weight 360g,Gross Weight 715g | |
| Hard configuration |
| Type | features | Description | Optional |
| CPU | Platform | Intel Alder Lake-N
N95 | Optional |
| Speed | 1.7GHz | |
| Max frquency | 3.40 GHz | |
| power disspation | 15W | |
| Memory | Type | DDR4 SO-DIMM | |
| Storage | Max 16GB | Optional |
| Storage | EMMC | Yes | |
| SSD | M.2 2280 NVME/ NGFF,Max 2TB | |
| 2.5 ''HDD/SSD | Support,Max2TB | Optional |
| TF card | Not supported by default | |
| RTC | BIOS support | Real-time clock,timing boot | |
| Auto power on | BIOS support | Yes | |
| TPM | CPU interation | Support TPM 2.0 | |
| Triple display | Video output | Support2*HDMI +VGA | |
| LED | status indicator | Blue light - Swith on | |
| Network |
| Type | Features | Description | Optional |
| WIFI | Type | WIFI5/WIFI6 on board,Default WIFI5 | Optional |
| Agreement | PCIE | |
| Bluetooth | Type | Bluetooth 4.2/5.2 | Optional |
| Agreement | USB2.0 | |
| 3G | build-in | No | |
| 4G | build-in | No | |
| Ethernet | LAN1 | 10M/100M/1000M Self-adaption | |
| Ports |
| Type | Features | Description | Optional |
| USB | USB2.0 | USB2.0 Type-A*2 | |
| USB | USB3.0 | USB3.0 Type-A*2 | |
| TF | expand external memory | No | |
| HDMI | Audio/Video output | HDMI 2.0 Type A x2 | |
| VGA | Video output | No | |
| RJ45 | Gbe | RJ45 x1 | |
| type_c | data transfer | No | |
| POWER | power | x1 | |
| DC IN | DC IN | 5.5/2.1mm DC Jack x1 | |
| Audio-in/out | Audio-in/out | 3.5mm Phone Jack x1 (Two-in-one interface) | |
| Antenna1 | FPC | WiFi 2.4+BT x1 | |
| Antenna2 | FPC | WIFI 5.0 | |
| Software configuration |
| Type | Features | Description | Optional |
| OS | OS version | Windows 11/Windows 10/Ubunut/Linux | |
| Applied environment |
| Type | Features | Description | Optional |
| Environment | operating temperature | 0~40ºC | |
| storage temperature | -20~60ºC | |
| humidity | 90% @ 40 °C (without condensation) | |
| Accessories |
| Type | Features | Description | Optional |
| Adapter | Plug type | input100~240V 50/60Hz,output 12V/2.5A | |
| IR remote control | No | |
| VESA | Yes | |
