CNC Middle Speed Multicut Wire Cutting Machine EDM for Mould Making

US$5,915.00
1-5 Pieces
US$5,658.00
6-9 Pieces
US$5,400.00
10-19 Pieces
US$5,298.00
20+ Pieces

Basic Info.

Model NO.
DK7745
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High Speed CNC Wire Cutting Machine
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Work Surface Size
Work Surface Size
Work Surface Travel
450mm×550mm
Maximum Thickness of Cutting Workpiece
450mm (Adjustable)
Maximum Taper of Cutting Workpiece
6°/80mm
Maximum Cutting Current
6A
Processing Accuracy
0.015 (φ10mm)
Transport Package
Wooden Packaging
Specification
1250kg
Origin
China
Production Capacity
1600/Pieces

Product Description

Overview
Product Description
1.Work surface travel:450mm×550mm
2.Maximum thickness of cutting workpiece:450mm adjustable
3.Work surface size:510mm×810mm
4.Maximum taper of cutting workpiece:6°/80mm
5.Maximum cutting current:6A
6.Maximum cutting efficiency:100mm2/min; (Cr12 40mm thick)

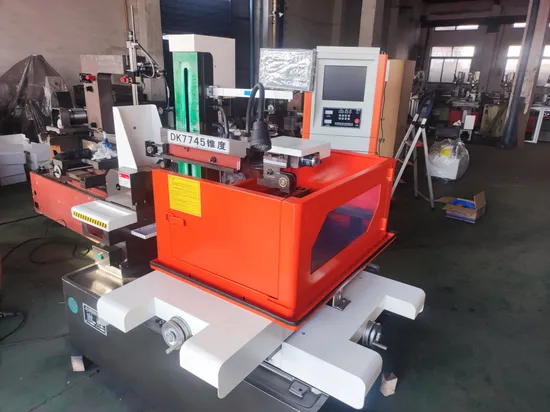

Detailed Photos
Product Parameters
Specification DK7745
Work surface size 510mm×810mm
Work surface travel 450mm×550mm
Maximum thickness of cutting workpiece 450mm (adjustable)
450mm (adjustable) 6°/80mm
Maximum cutting current 6A
Processing accuracy 0.015 (Φ10mm)
Electrode wire diameter Φ0.18mm
Workbench load 600kg
X-axis travel 450mm
Y-axis travel 550mm
Z-axis travel 450mm
X, Y axis positioning accuracy Total length ≤ 0.02mm
Lead Screw Precision ball screw
Guide Precision steel V flat guide rail
Bed Semi-enclosed
Spindle up and down movement distance 100mm~600mm
Water tank Large flow, low pressure special wire cutting water tank Water tank capacity ≥ 60L
Working fluid Special emulsified paste or water-based cutting fluid
Power supply 380V±10%,50HZ
Total weight of machine tool 1250kg
Machine tool dimensions 1350mm×1650mm×1720mm

Certifications
Hot Sale Products
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
