Vmc650 Small Vertical Machining Center CNC Milling Machine for Sale

Product Description

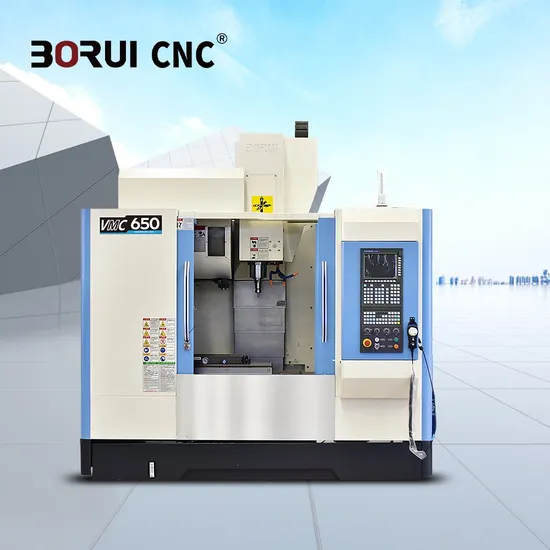

Vmc650 Small Vertical Machining Center CNC Milling Machine for Sale
Product Description
The VMC650 vertical machining center consists of main engine, CNC system, electrical control system, automatic lubricating system, cooling system, totally enclosed protective cover, automatic chip removal device (optional) etc.The machine has the X, Y, Z three axis linkage, in a clamping can finish milling, drilling, boring, expanding continuously, hinge, such as the internal and external screw thread processing a variety of rough and finish machining process, is suitable for processing all kinds of high precision, working procedure, shape more complex parts, to provide users with complex parts processing and quick, perfect integration solutions.
The machining center/milling of feed shaft for X, Y, Z three coordinate control, three axis through the servo motor drive, can achieve for a variety of plate, plate and shell, a complex parts, such as CAM, mold clamping, complete drilling, milling, boring, expansion, reaming, tapping and other process, are suitable for many varieties, small batch parts production, for complex, high precision parts processing and more shows its superiority.

Product Parameters
The main specification :

Specifications	Units	VMC650
Table size	mm	800x400
X axis travel	mm	650
Y axis travel	mm	400
Z axis travel	mm	500
Max. worktable load	kg	400
T slot(number-width-pitch)	mm	3*18*125
Max. spindle speed	rpm	8000
Spindle taper	mm	BT40
Main motor power	kw	5.5
X/Y/Z rapid traverse speed	m/min	24/24/20
Cutting feed speed	mm/min	1-10000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	550
Distance between spindle nose and worktable surface	mm	120-620
Positioning accuracy	mm	±0.008
Repeat positioning accuracy	mm	±0.005
Tool magazine		16
Machine weight	kg	4000
Overall dimension	mm	2400X2000X2550

Standard accessory Optional accessory1.Fanuc-0i-mate-MD 1.Mitsubishi M70/GSK218M/Fanuc
2.full enclosure machine guard change 2. Funnel type tool change
3.Arm type ATC 3.chip car
4.automatic central lubrication system with alarm 4.4th axis
5.Z axis counter-balance weight 5.Metrol tool setters
6.spindle cooling unit 6.transformer to suit local power supply
7.spindle side air blow 7.screw type chip conveyor
nozzle&coolant nozzle
8.machine window with safety glasses
9.rigid tapping
10.auto power off
11.3 colours warning lamp
12.work lamp
13.leveling pads&bolts
14.operation manuals
15.tool holder and pull stud
Details Display

The main feature : 1. Adopting the world advanced numerical control system, the M60S series are servo-driven, ensuring the stability of the control system is high, the speed is fast, and the surface is smooth.
The advantages of high precision, the ability to make moulds, is the best choice for mold production.
2. All M60S series controllers are marked with RISC64 bit CPU.
3. Coordinate display value conversion can be freely switched (program value display or manual insertion quantity display switching)
4. Standard internal carrier profile function, working position coordinates and central point measurement functions.
5. Buffer correction function extension: can correspond to IC card/computer link B/DNC/MDI mode.
6. Edit the edit mode in the edit screen, and switch to edit or edit the whole page.7. Graphical display function improvement: can contain the prop path information to fully display the work coordinates and the actual location of the props compensation.
Packaging & Shipping
Packing shipping
For machine: usually by sea; For documents: by international express, eg. DHL,TNT or EMS. For packing :Free fumigation plywood packaging steel base our service 1. Technical support online service provided. 2. Technical files service provided. 3. Machine operation video provided 4. On-site training service provided. 5.Spare parts replacement and repair service provided. 6 All of the questions will be replied within 8 hours 7. If you need to develop products with your own specification, we can help you to work it out. 8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
