P3.91 P2.976 P2.604 500*500mm LED Screen Panels

Product Description

Indoor P3.91 Led display screen panel use the 500*500mm the cabinet , Super light weight of panel as 7.8kg . Cabinet thickness is only 80cm . Easy to installation and transportation This Pixel now is very popular in the Malaysia & Indonesia & India and so on South Asia Market for the Indoor tv studio backdrop led display screen more widely use in the high level place such us the exhibiton show , Conference room , New Meeting Room and so on place
Specification

NO.:	Product name	Technical parameter
1	Pixel Pitch(mm)	3.91mm
2	Pixel configuration	1R1G1B/SMD2121 Black Lamp
3	Pixel density	65536dots/sqm
4	Brightness	≥1200cd/sqm
5	Module size(W*H)	500mm×500mm
6	Module Resolution (W*H)	64 dots x 64dots
7	Module weight	600g
8	Led lamp	National star
8	Cabinet size (W*H)	(500mm×500mm)or(500mmX1000mm)
9	Drive IC	MBI5124 Or MBI5153
10	Drive mode	1/16scan
11	Viewing Angle(V/H)	140 ºC
12	Grey Scale	65536 degree
13	Life time	>100,000 Hours(80%)
14	MTBF	>50,000 Hours
15	Operating Voltage	AC110V/220V±10%
16	Screen Power Consumption	Max: 900w/sqm; Average:300w/sqm
17	Input Power Frequency	50/60Hz
18	Operating temperature	-30--60ºC
19	Humidity	10%-95%
20	Refresh Rate	≥1920HZ
21	Control Method	Synchronized with computer monitor
22	Color Temperature	6500K-9500K
23	LED control system	LINSN,Nova-star,Colorlight is selectable
24	Control Distance	100 m (no repeating); Optical fiber transmission: 500m- 15km
25	Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
26	Systems Operating Platform	Windows Xp / Windows 7 / windows 8 /8.1 / windows 10

Shenzhen RX-Vision Optoelectronic Co., Ltd have 8 years experience of the Led display screen panel manufacture . We have done lot of the project of the Indoor rental led display screen & Outdoor rental Led screen panel & Outdoor advertising screen panel & Outdoor fixed Led display & Indoor Fixed Led display screen so on Led display screen Project . This Indoor P3.91 Led screen panel cabinet can mixed the cabinet as 500*500 it is make the cabinet as inner outner as +- 15 degree . Cabinet have the double locks , HUB + Receiving card together to use, Cabinet can easy to front maintenance .Perfect 16:9 Colorful images ,Month ,Ultra -thin Die casting aluminum structure , high connection accuracy , Error less 0.1mm , Natureal aluminum heat conduction design even no cooling fans still very quiet .Make client can installation and fix more easy . Sametime this cabinet have two types of it , one is straight and another one is curved cabinet . Inner & Outner 15 degree suitable for the client in the difference shape request . It adopt the magetic design for easy can make the cabinet
Detailed Photos
Using the Hub Card instead of the power and flat cable let the led display more stable during the shipping and also use more stable .Rental Led display board now more and more use the rigid connect to replace the normal type which is more widely accpetable in the high level rental cabinet location
Installation Instructions
Our Advantages
Our factory :
we have the no-dust factory production line , all the production process following the 6S , Every step of the goods we will test 72 hours from the modules - installation - whole display aging test
Our Production Process :

Every step of the production we following the serious quality check , from material check - PCB printer - Led lamp SMT- Waving soldering machine - Test - aging test every step have professional person to following 6S Quality check .Modules aging test 72 hours , Whole Led display screen aging test 72 hours , delivery goods before double check
After Sales Service
Get your idea ---- provide the project design drawing -- do the recommend which pixel suitable for you --make the installation drawing & engineer drawing--- Provide offer price --- explain details difference ---do the production --delivery goods -- 24 hours after service --- Technical installation guide --- help system set up

Our client feedback :

We have the 3 Branch around of the world , In Peru , USA , Saudi we have the branch and distubitor . our goods exported to nearly 30 countries after years work hard have already get clients good feedback and good reputation .We have the professional engineer team , 24 hours after -service , professional installagion and design team . All your project question can be easy find solution in our here .
Our Project case :

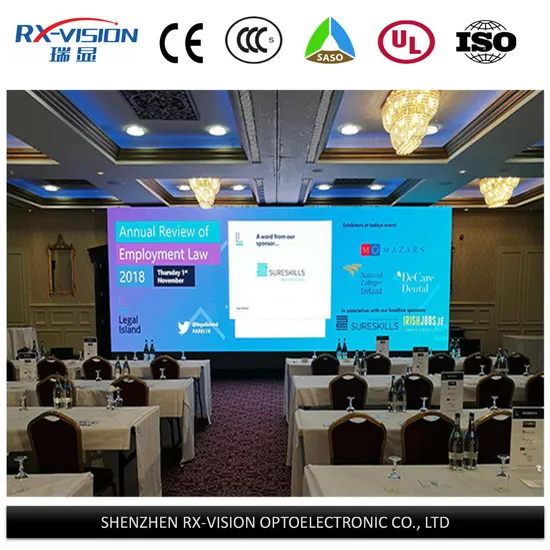

Indoor P3.91 & P2.976 & P2.604 rental LED Screen Display is mainly used for performances, conferences, exhibitions Rental Led display , weddings Led display , foundations, opening, promotion and other activities, stage background structure, lighting and sound equipment and special effects equipment rental places. At Concerts ,Exhibiions ,weddings , Conference ,Annual parties ,DJ Bars and other events make the whole place more colorful

To Be Your Partner ? we are expect to work with you and find the best solution for every project of yours . 8 Years Experience on LED Display screen manufacturing . we have special engineer team we can according to your project special design for you of the CAD drawing & installation drawing , sametimes some project we send engineer to foreign country to help client to install and training for them ,we do the excelletn after -service to meet your standards of excellence. All the material we are use best type of the goods , warranty three years .

---
