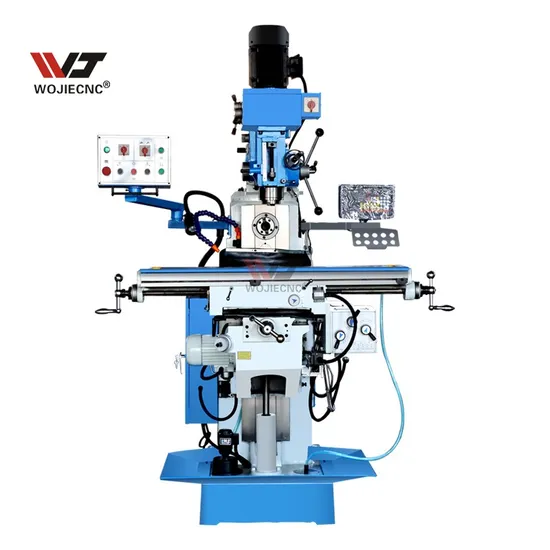

Drilling Milling Machine Zx6350c Knee Type Mill Machine Mill Drill

Product Description

Product Description
1,Headstock swivels ±45°,
2,ZX6350C Vertical milling spindle by manual,
3,ZX6350Z Vertical milling spindle by Auto-feeding,
4,ZX6350ZA X/Y/Z axis auto feeding,vertical milling head auto feeding,coolant pump,working lamp,oil pan,controlled operation box.
Product Parameters

SPECIFICATIONS	Units	ZX6350C
Max. drilling dia.	mm	50
Max. end milling dia.	mm	100
Max. vertical milling dia.	mm	25
Max.boring dia.	mm	120
Max. tapping dia.	mm	M16
Distance between spindle nose and table surface	mm	80-460
Spindle taper	-	MT4(V) ISO40(H)
Spindle speed range	rpm	40-1400(V) 40-1300(H)
Spindle travel	mm	120
Table size	mm	1200*280 0pt.1500*280
Table travel	mm	680*280 0pt.1000*280
Worktable auto feed	mm/min	X: 16-480
Main motor power	kw	1.5/2.2(V)3(H)
Machine weight	kg	1400
Overall dimension	mm	1680*1400*2350

Detailed Photos

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
