Household Plastic Parts Manufacturing Line

Product Description

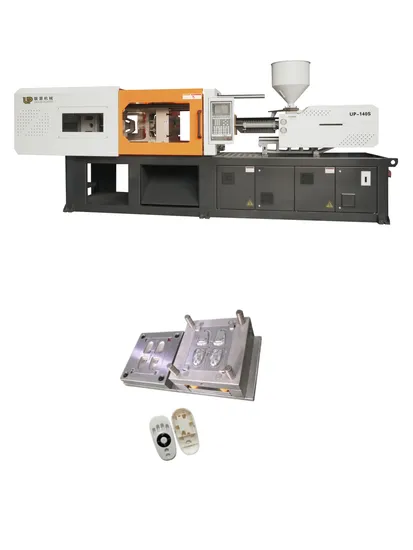

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Features of our Servo Injection Molding Machine:
Modulus of Capacitance: Includes position, size, and maximum allowable modulus of capacitance for the guide pillar.
Nozzle Parameters: Specifies spherical diameter, aperture, outer diameter, extension length, and positioning aperture of the nozzle.
Code Mold Parameters: Covers mold hole and slot size for coding purposes.
Ejection Mechanism: Details ejection point position, ejector rod diameter, force, and stroke if needed.
Mold Opening Stroke: Indicates opening stroke and maximum opening distance for efficient operation.
Our standard injection molding machine is designed to meet industry requirements and ensure precise and reliable performance.

Technical Parameters	Model UP-140T
Injection Unit	A	B	C
Screw diameter (mm)	38	42	45
Shot Volume (cm3)	215	260	302
Injection weight (g)	194	237	272
injection pressure (Mpa)	186	152	132
Screw speed (rmp)	215
Clamping Unit
Clamping force (KN)	1400
Open stroke (mm)	380
Max Mold height (mm)	450
Min Mold height (mm)	135
Space between tie bars(mm)	420*420
Ejector force (KN)	46
Ejector stroke (mm)	120
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	13(14)
Heating power (KW)	8.2
Machine dimension (M)	4.2*1.2*1.9
Machine weight (T)	3.4
Oiltank cubage (L)	190

---
