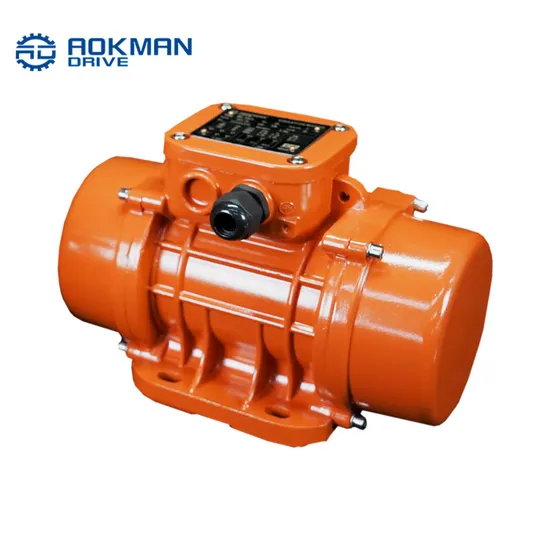

Aokman Drive Vibrating Feeder Machine Vibration Motor

Product Description

Aokman Drive Vibrating Feeder Machine Vibration Motor 1.This motor is of a reasonable design using superior process materials in order to product a highly efficient motor with a low operating temperature with a long service operating life.
2.The weight density and design this vibratory motor has a good vibratory output force(KN) with a high starting torque and low electrical power consumption.
3.Low operating noise levels(dB) during running and fluctuating loads.
4.This vibratory motor has a completely enclosed construction whereas it can used in high levels of various dust environments.
5.By adjusting the angle of the counterweights(flyweight) various levels of vibratory force percentage can be achieved.
6.Based on the method of the electric vibrators installation,the direction of the vibratory forces can be obtained.
7.The various levels of vibratory models of vibration are able to be achieved for the work required.
AOKMAN can design and manufacture customized electric vibrators with 50HZ/60HZ frequency, customized voltage range ,high altitude according to custom's special requirement.

Model	Rated Force(N)	Rated Speed(rpm)	Rated Power(Kw)	Rated Current(A)	Rated Voltage(V)	Mounting dimension(mm)				Lay-out dimension(mm)
						A	B	H	n-φK	AB	BB	HD	G	L
MVE-0.5-2	500	3000	0.03	0.16	380	106	62-74	48	4-φ9	130	121	136	10	121
MVE-1-2	1000	3000	0.04	0.19	380	106	62-74	48	4-φ9	130	121	136	10	121
MVE-2-2	2000	3000	0.09	0.35	380	106	62-74	64	4-φ9	131	123	159	12	123
MVE-3-2	3000	3000	0.16	0.52	380	125	90	79	4-φ13	155	163	175	14	253
MVE-4-2	4000	3000	0.2	0.58	380	125	90	79	4-φ13	155	163	175	14	273
MVE-5-2	5000	3000	0.37	0.96	380	140	105	92	4-φ13	168	178	196	20	334
MVE-7-2	7000	3000	0.45	1.25	380	140	105	92	4-φ13	168	178	196	20	334
MVE-8-2	8000	3000	0.55	1.45	380	170	120	94	4-φ17	208	205	210	22	321
MVE-10-2	10000	3000	0.75	1.85	380	170	120	94	4-φ17	208	205	210	22	321
MVE-13-2	13000	3000	1.1	2.44	380	170	120	94	4-φ17	208	205	210	22	321
MVE-16-2	16000	3000	1.25	2.78	380	190	140	120	4-φ17	234	220	272	26	437
MVE-18-2	18000	3000	1.35	3	380	190	140	120	4-φ17	234	220	272	26	437
MVE-20-2	20000	3000	1.5	3.1	380	190	140	141	4-φ17	356	206	287	25	452
MVE-22-2	22000	3000	1.5	3.1	380	190	140	141	4-φ17	356	262	287	25	452
MVE-23-2	23000	3000	1.5	3.1	380	190	140	141	4-φ17	356	262	287	25	452
MVE-32-2	32000	3000	2.2	4.6	380	190	155	160	4-φ25	380	254	287	30	552
MVE-40-2	40000	3000	2.3	5.3	380	255	155	160	4-φ25	302	273	287	30	538
MVE-50-2	50000	3000	3.5	7.22	380	255	155	160	4-φ25	302	273	318	30	588
MVE-65-2	65000	3000	4.2	8.2	380	255	200	200	4-φ28	378	325	318	40	605
MVE-90-2	90000	3000	7.2	17.8	380	320	200	200	4-φ28	378	325	411	40	605
MVE-120-2	120000	3000	10	19	380	320	250	204	6-φ38	452	367	411	40	646

Our Company
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
Wholesale Gear Motors Powerful NMRV 050 Worm Gearbox for Elevator
AOKMAN DRIVE DRIVE BY QUALITY.
Industrial Gearboxes & Customized Solutions Just For You

Pre-sale services	1. Select equipment model.
	2.Design and manufacture products according to clients' special requirement.
	3.Train technical personal for clients
Services during selling	1.Pre-check and accept products ahead of delivery.
	2. Help clients to draft solving plans.
After-sale services	1.Assist clients to prepare for the first construction scheme.
	2. Train the first-line operators.
	3.Take initiative to eliminate the trouble rapidly.
	4. Provide technical exchanging.

FAQ
1. How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
2. What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor information etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
3. What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,escalator,automatic storage equipment,metallurgy,environmental protection, logistics and etc.
4. Do you sell motors?
Yes,We produce different types of motors.We can provide motors with high quality.
