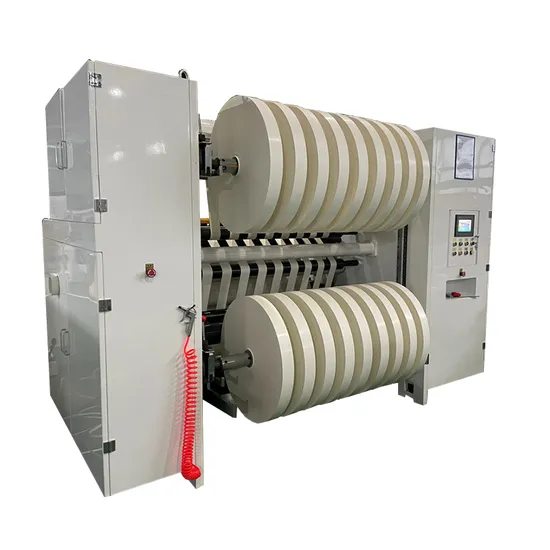

Plastic Roll Slitting and Rewinding Machine (JT-SLT-1300C)

Product Description

JT-SLT-1300C
Plastic Roll Slitting and Rewinding Machine

Product Description

Max. Unwinding Width	1300mm
Max. Unwinding Diameter	1500mm
Max. Rewinding Diameter	Standard 800mm and 1000mm
Min. Slitting Width	80mm
Acceptable Thickness Range	40gsm-500gsm
Max. Machine Speed	300m/min
Unwinding Shaft	76mm air expending shaft
Rewinding Shaft	76mm air expending shaft
Machine Weight	3500kg
Overall Dimensions	3520mm * 3340mm * 2000mm

Product Parameters

Main Applicable Materials And Specifications:

Plastic Roll Slitting and Rewinding Machine (JT-SLT-1300C) suits to the slitting of various material, such as regular paper, Kraft paper, bond paper, aluminum foil, film etc.

1.Machine adopts PLC control system and 7" Hightech HMI control, all the parameters are shown on the screen. You only setup roll diameter, material thickness and original tension etc, the machine can work automatically.

2. Machine adopts 3 sets inverter motors and 3 sets frequency inverter.

3. Machine adopts automatic hydraulic shaftless loading system, it is convenient for feeding.

4. Machine adopts Web Guide, its high sensitivity can assure the accuracy of material position. --- Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.

5. Machine adopts automatic tension controller, tensions were controlled by PLC, you need preset the unwinding rolls original diameter & thickness and rewinding rolls rewinding diameter thickness, tension will to be adjusted automatically.

6.It adopts magnetic brake, the rewinding adopts magnetic clutch * 10kg

7. It adopts automatic lift up unloading system for loading rewinding rolls.

7.All transmission shafts are dynamic/static balance treated.

8.It adopts automatic meter counter. When reached the preset length, machine stop and alarm automatically.

9.It adopts emergency switch.

10.It adopts air blower to blow waste material off.

Detailed Photos
Packaging & Shipping
Packaging: Plastic Roll Slitting and Rewinding Machine is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.Delivery Time: Within 30 days after received 30% deposit receipt by T/T. Plastic Roll Slitting and Rewinding Machine (JT-SLT-1300C)
