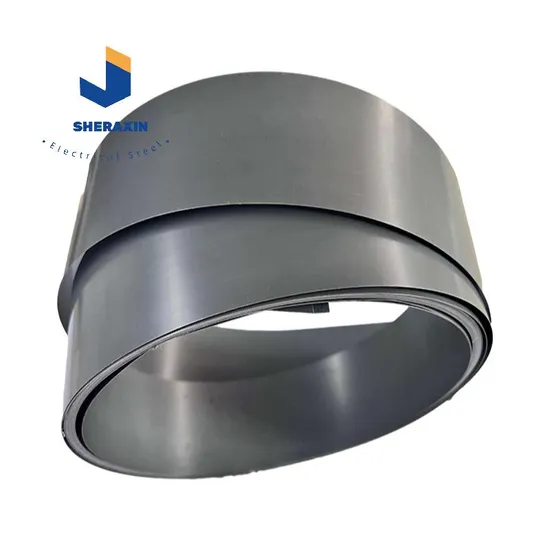

Wholesale Toroidal Transformer Grain Oriented Silicon Steel Coils CRGO Electrical Steel

Product Description

Product Description
Wholesale Toroidal Transformer Grain Oriented Silicon Steel Coils CRGO Electrical Steel
Silicon steel, also known as silicon steel sheet or electrical steel, is a very low carbon content of ferrosilicon soft magnetic alloy steel, usually containing silicon 0.5% to 4.5%. The addition of silicon can increase the resistivity and maximum permeability of iron, thereby reducing coercivity, iron loss and magnetic aging.
The difference between oriented silicon steel and non-oriented silicon steel
Non-oriented silicon steel: ferrosilicon alloy with very low carbon content. In deformed annealed steel plates, the grains are randomly distributed. The silicon content of the alloy is 1.5% ~ 3.0%, or the sum of silicon and aluminum content is 1.8% ~ 4.0%. Products are usually cold rolled sheet or strip, mainly used in the manufacture of motors and generators.
Available For Stock:
CRGO:30Q120,30GK110,30GK105,30GK100,27GK120,27GK110,27GK105,27GK100,23GK095,23GK090,20/23Q100,20/23Q095,20/23Q090,
20/23Q085,20/23Q080
CRNGO: 50W310,50W470, 50W600, 50W800, 50W1300, 35W250, 35W270, 35W300, 35W440, 35W550, 35WP1900, 30WP230, 27WP230, 25WP1500 Product Parameters

Type	Grade	Thickness	Width	Max Core Loss @ P17/50	Lamination Factor(%)	Induction @ B8
Common Type	23Q110	0.23mm	900-1200mm or as requested	1.10w/kg	97	1.85T
	27Q110	0.27mm		1.10w/kg	97	1.85T
	27Q120	0.27mm		1.20w/kg	97	1.85T
	30Q120	0.3mm		1.20w/kg	98	1.84T
High Induction Type	23QG085	0.23mm	900-1200mm or as requested	0.85w/kg	97	1.90T
	23QG090	0.23mm		0.90w/kg	97	1.90T
	23QG095	0.23mm		0.95w/kg	97	1.89T
	23QG100	0.23mm		1.00w/kg	97	1.89T
	27QG095	0.27mm		0.95w/kg	97	1.90T
	27QG100	0.27mm		1.00w/kg	97	1.90T
	30QG100	0.3mm		1.00w/kg	98	1.90T
	30QG105	0.3mm		1.05w/kg	98	1.89T
Domain Refined High Induction Type (Laser)	23R080	0.23mm	900-1200mm or as requested	0.80w/kg	97	1.89T
	23R085	0.23mm		0.85w/kg	97	1.89T
	27R090	0.27mm		0.90w/kg	97	1.89T
	27R095	0.27mm		0.95w/kg	97	1.89T

Main Brand	HUAXI STEEL, BAOSTEEL, WISCO, Nippon Steel, JFE, AK
Grade	CRGO: 20ZDKH75, B20P075, B20P070, B18R070 B23G110, B23G100, B23P100, B23R095, B23R090, 23ZH90,23QG090, B23R080 27Q120, 27QG100, 27QG095, B27P120, B27P100, B27P095 30Q130, 30Q120, 30QG105,B30G130, B30G120, B30P120, B30P105 35Q155, B35G155, 35Z155
	CRNGO: B35A270, B35A250, B35A230, B35A300, 35WW270,35WW250,35WW230 B50A800, B50A600, B50A470, B50A400, B50A310, B50A290, B50A250, B50A1300, B50A1000
Nominal thickness	0.18mm, 0.20mm, 0.23mm,0.27mm,0.30mm,0.35mm, 0.5mm
Coil ID	508mm
Weight	2MT~8MT
Standard	EN 10106,IEC 60404-8-4,ASTM,DIN,GB,JIS
Form	Cold Rolled Strip

NO	Brand	Thickness (mm)	Coil weight (Ton)	lronLoss(50HZ)P1.7(W/KG)
1	HUAXI Steel	0.18-0.35	4~25 or as requested	60-120
2	BAO Steel	0.18-0.35	4~25 or as requested	60-120
3	Shougang Steel	0.18-0.35	4~25 or as requested	60-120
4	Wisco Steel	0.18-0.35	4~25 or as requested	60-120
5	Tisco Steel	0.18-0.35	4~25 or as requested	60-120

Company Profile
15+ years of manufacturing experience
Wuxi Sheraxin Electrical Steel Co., Ltd
Professional, efficient and good service
Do things sincerely, connect the world

Our main business field is the manufacturing, Processing and distributing of silicon steel product. Our company main product including Cold Rolled Grain Oriented Silicon Steel (CRGO) coil/strip/sheet , Cold Rolled Grain Non-oriented Silicon Steel (CRNGO) coil/strip/sheet , Transformer iron core, EI,TI Laminations etc...
We have more than 15+ years of manufacturing experience and 20 years of domestic market. We have customized production capacity. We have more than 80 employees and the factory covers an area of more than 8,000 square meters. Year capacity up to 100, 000 Tons.
We are also agent of Baosteel, Wisco, Shougang Group, Shagang, An steel. Tisco etc. We have best supply chain and competitive price, will match different quality and price level requirement. Now our clients throughout the world and areas in MID-east, Africa, South-America, Southeast Asia, Latin-America, Europe etc... Characteristics
* MAGNETIC PROPERTIES
The product has the characteristics of low iron loss, high permeability and excellent application performance.
* THICKNESS TOLERANCE
Good thickness tolerance shows that the thickness difference in parallel rolling direction is small, the thickness difference in vertical rolling direction is small, and the lamination coefficient is high.
* PROCESSING PROPERTY
The product is suitable for punching and cutting, with good dimensional tolerances.
* INSULATION COATING
The insulation coating has small color deviation, excellent resistance to heating and corrosion with high insulation coating resistance. Our Advantages
1. We are a manufacturer and have a large amount of inventory, we can meet your customization needs with fast delivery.
2. We are a trustworthy manufacturer, can give you a more stable supply of products, stable price, perfect after-sales service.
3. We have strict and perfect raw material screening standards and quality test method. The qualified rate of our exported products is 100% and we accept any third-party inspection before shipping.
4. We are very close to the port of Shanghai, so the freight is very cheap and the delivery is fast. Our Factory
Our Company
Packing Unit weight < 4 Tons
* Intermal and external dedicated air anti-corrosion paper: 1 layer
* Intemal and exteral paper angle protection: 1 pair respectively
* Intemal and external surrounding protection plate: 1 piece
* Intemal and external metal angle protection ring: 1 pair respectivelyUnit weight ≥ 4 Tons
* Internal and external dedicated air anti-corrosion paper: 1 layer

* External buffering plate: 1 piece
* Interal and external paper angle protection: 1 pair respectivel
* Internal and extemal surrounding protection plate: 1 piece

* Intemal and external metal angle protection ring: 1 pair respectively
Shipment Loading
Our Customers
FAQ
Q1: Are you a manufacturer?
A: Yes, we are the manufacturer. We have our own factories and companies. So our prices are more competitive than trading company.
Q2: Can you arrange the shipment for us?
A: Yes, we have many years of cooperation forwarders, we can get the best price for earlier ships and professional service.
Q3: Can we visit your factory?
A: Of course. We welcome you to visit our factory, check our production lines and get to know our strength and quality.
Q4: What is your after-sale service?
A: We provide after-sales service and 100% product guarantee and we accept any third-party inspection before shipping.

---
