Muiti Purpose Servo Motor Toroidal Transformer Coil Winding Machine for Litze Copper Wire

Product Description

GW-90T Automatic Toroidal Inductor Winding Machine

Wire size	0.5-1.8mm
Minimum finish inner diameter	15mm
Maximum completion height	80mm
Maximum finish outer diameter	35-80mm
Max speed	600rpm(0.5-1.0mm) 300rpm(1.1-1.8mm)
Tape Magazine diameter	310mm

GW' s modular system with interchangeable heads and roller tables from the HEAVY machine series. It is designed with superior components; PLC control, servomotor for head drive and precision stepper motor for core drive. The GW-HEAVY is different than existing HEAVY machines on the market: The user friendly PLC software guides the operator thru the programming with clear text commands. It is easy to operate the machine. Typical jobs for the GW-HEAVY are general and heavy duty applications.the machine is very strong and heavy and it has a powerful SERVO MOTOR with 1.5KW for the head drive, therefore ,it can handle thick wires at high speed.
MACHINE BODY FEATURES : CONTROLLER PLC CONTROL WITH SOFTWARE LANGUAGES: EN.CH./PLC, DISPLAY LCD-DISPLAY WITH BACKGROUND ILLUMINATION:CONTINUOUS READ OUT OF OPERATION DETAILS/ PRESETS 25 PROGRAMS, /25 EACH PROGRAM CONTAINS OF30SEQUENCES/ PROGRAMMING USER FRIENDLY TEXT COMMANDS/ DATA MEMORY AND OUTPUT INTERFACES FOR PC INTERFACE
INTERFACE FOR SOFTWARE UPDATES /PC WINDING SPEED UP TO 1500 RPM/ SEPARATELY PROGRAMMABLE LOAD SPEED SEPARATELY PROGRAMMABLE WIND SPEED/ CORE DRIVE STEPPER MOTO. WIRE PITCH CONTROL FULLY AUTOMATIC PITCH CHANGE, PROGRAMMABLE IN STEPS OF 0,001mm CORE INDEX & REVERSE CONTROL

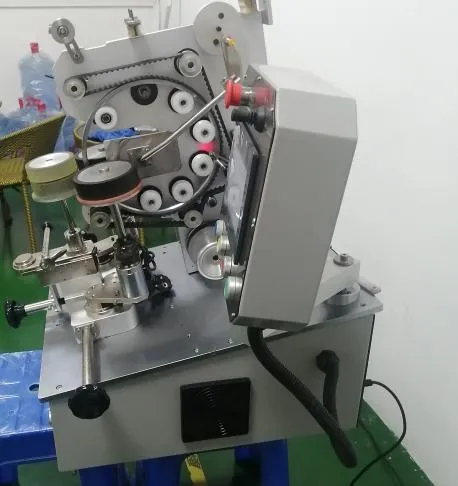

FULLY AUTOMATIC/ ACCELERATION & DECELLERATION FULLY AUTOMATIC/ STOPS FOR TAPS AUTOMATIC/ SECTOR & BANK WINDING CONTROL FULLY AUTOMATIC/ WINDING HEAD DRIVE SERVO MOTOR 1.0 KW/ TAPING OPERATION FULLY AUTOMATIC/ VOLTAGES 230 (110 AND 240) VOLT, 50 HZ AC MACHINE SIZE AND WEIGHT 1100×700 MM 150 KG NET,200KG GROSS Detailed Photos


Application

Toroidal Winding Machine Application:
Company Profile
Grewin Industrial Group Co., LTD, founded in 1993, is one of China's largesttoroidal winding machine manufacturers.
Widely used in toroidal transformer, current transformer, sensor, inductor manufacturing and other related industries.
Our team always adheres to the concept of serving customers and meeting customer needs, and has won unanimous praise from customers.
Certifications

Our Team with Customers

Packaging & Shipping
Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for ToroidalTransformerWindingMachine
Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
After -sales service:
PRE-SALE:
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE:
1. Delivery time: 5-10 days(standard machine), 30 days(custom )
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE:
1.24 hours free remote service: video guide and telephone
2. Warranty:1 year after-sales service

---
