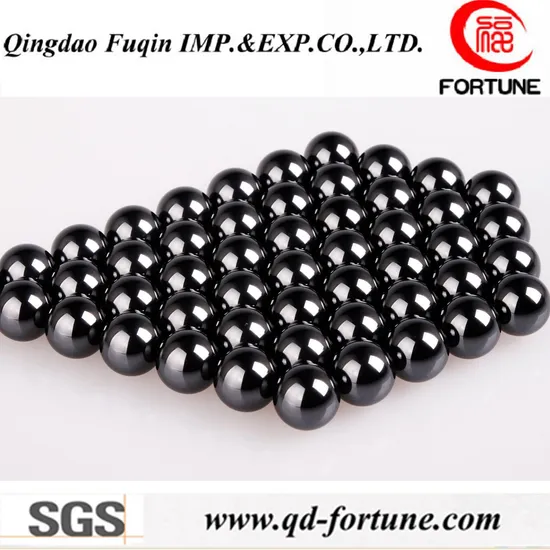

G5 Silicon Nitride Si3n4 Ceramic Ball for Bearings

Product Description

Company Introduction
Qingdao Fuqin Imp. & Exp. Co., Ltd. is a professional manufacturing and exporting company, mainly supplying balls, rollers, rod ends and so on. The team's is professional and aims to sport qualified products, quick service and quick delivery.
We have worked for the automotive, bearing,and cosmetics industry for more than 15 years. To reach the aim we are continuously developing...
Material properties

Material	Material Model	Material Grade	Color	Main Mateiral Characteriestics
Si3N4	JSN-W4C(HIP)	Class I (ASTM F2094)	Black	High fatigue life, high reliability, high strength, high temperature resistance, wear resistance, non-magnetic
	JSN-W4(HIP)		Gray	Corrosion resistance, high strength, non-magnetic
	JSN-05W(HIP)	Class II (ASTM F2094)	Black	High fatigue life, high temperature resistance, wear resistance, high strength
	JSN-12		Black	High temperature resistance, high strength, wear resistance
	JSN-63		Gray	High temperature resistance, high strength, wear resistance
Al2O3	AO-3N01	99.7wt%	Yellow	High hardness, high temperature resistance
	AO-4N01	99.99wt%	White	Corrosion resistance, high hardness, high temperature resistance
SiC	SC-HD01		Black	High hardness and corrosion resistance
ZrO2	ZO-HD01			High strength, high toughness, corrosion resistance
YSZ	ZO-HD01		White	High strength, high toughness, corrosion resistance

Material	Dia (mm)	Highest Grade Level	Process Characteristic
Si3N4	0.4~140	G5	GPS,HIP
Al2O3	≥1.0	G10
SiC	0.8~19.05	G16
ZrO2	≥0.1	G10
YSZ

Product Parameters
applicatoin
High precision / speed bearings,
High / low temperature bearings/volves,
Hybrid bearings
Non-magnetic bearings,
Hiprecision linear motion system,
Robot arm joint ,
Automotive,
Our Advantages
1. Quality control by the professional team 2. Quick respond to your inquiry and other questions 3. Quick delivery

---
