Rubber Shoe Outsole Moulding Machine

Product Description

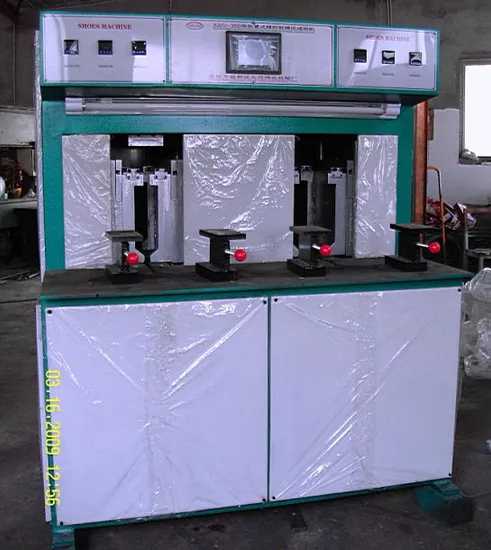

XJ9C2-350 inversion type rubber shoe-mould finalizing machine: FOR Safety Shoes Boots Even 24 hours in water!
Easy operation: Put shoe uppers on the mold, and shoe sole rubber on the mould, click, wait and a strong shoe comes out! High efficiency: one operator can control 3-5 machines at the same time.
Parameters

Open width	130mm/5.2 in.
Mould rising high	90mm / 3.6 in.
Motor Power	3kw / 3.9HP
Heating Power	6kw / 7.8HP
Max. System Pressure	5.5Mpa / 55 bar
Size	1470*1050*1750mm 58.8*42*70 in.
Weight	1800kg

XJ9C2-350 inversion type rubber shoe-mould finalizing machine is professional shoe-making equipment, which integrates vulcanization, stitching and finalizing. It has function of automatic program control. The hydraulic pressure system is advanced and reliable, which can keep constant temperature, deflate, draw pattern and control time automatically. The adoption of mechanical connecting bar structure ensures no split of mould and degumming phenomenon during vulcanizing process. Because of the inversion type, shoes surface are kept clean, so high quality jackboot, safety shoes and other shoes can be produced.
Sample shoes made:
MOULDS Detailed Photos
Packaging & Shipping
Contact us for more information and working video!

---
