China CNC Milling Machine 3-Axis Machine Center Vertical Milling Machine

Product Description

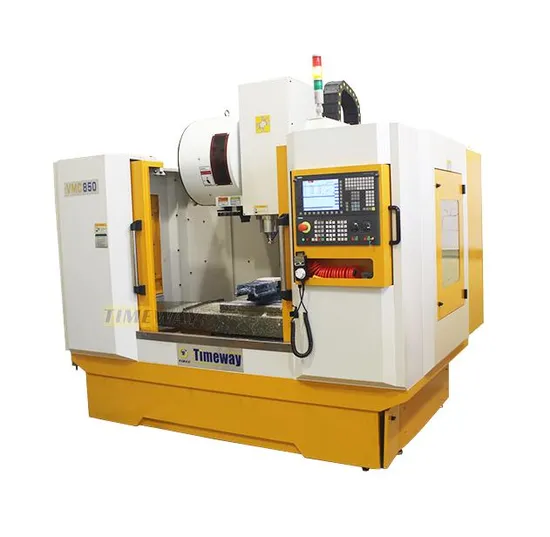

Vertical Machining Center
Product Description
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis). Product Parameters

Specification	Unit	VMC650	VMC850
Worktable size (WxL)	mm	420x1000	500x1000
T-slot (No./width/pitch)	mm	5/18/80	5/18/90
Loading capacity	kg	400	600
Longitudinal travel (X)	mm	700	800
Cross travel (Y)	mm	450	500
Vertical travel (Z)	mm	450	500
Distance from spindle nose to table	mm	130-630	110-610
Distance from spindle center to column	mm	495	550
Spindle taper	-	BT40	BT40
Spindle speed	rpm	8000	8000
X/Y/Z-axis rapid feed speed	m/min	15/15/15	15/15/15
X/Y/Z-axis positioning accuracy	mm	0.01	0.01
X/Y/Z-axis repositioning accuracy	mm	0.008	0.008
Main motor power	kw	7.5/11	7.5/11
Air pressure source	kg/cm2	6-8	6-8
Power capacity	Kva	18	20
Tool magazine capacity	T	12 (Crousel)	24 (Disc)
Guideway type	-	Sliding	Sliding
Machine weight	kg	3500	4600
Machine dimensions (LxWxH)	mm	2400x1900x2400	2800x2350x2600

Accessories

Standard accessories

Optional accessories

√ FANUC 0i MF CNC system √ X/Y: Linear guide rails, Z: Sliding guide rail √ Taiwan BT50 spindle, 6000rpm √ Taiwan disc-type ATC with 24tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English)

_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system

Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience;3 . Exported more than 60 countries;4 . CE, ISO Certificates;5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);6 . 12 months quality warranty;7 . Oversea engineers available for problem resolving;Q: Do you have QC or any safety standards for your machinery?A: yes, we have established a highly strict quality control department to guanrantee good quality.Q: What's the MOQ?A: 1 set (Only some low cost machines will be more than 1 set )Q: What about the payment terms?A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;(2) Irrevocable LC at sight;(3) Western Union, MoneyGram, etc.Q: How about the warranty?A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
