Wireless Ap 3000Mbps 256+ Useers High Performance Oepnwrt

Product Description

Short Specification

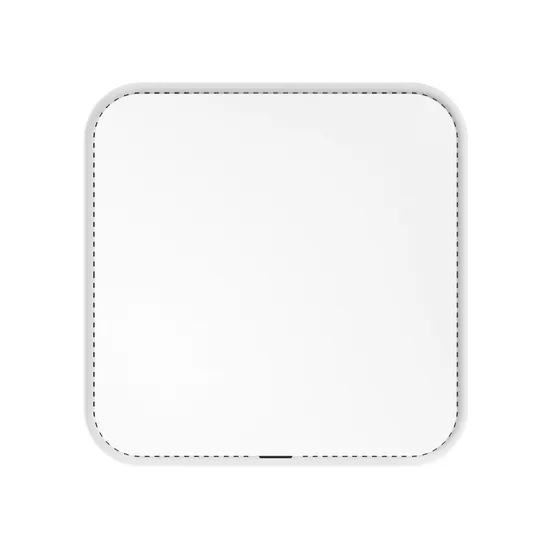

AX830 is an 11ax Wi-Fi standard Qualcomm Chipset industrial Ceiling Wireless Access Point based on IPQ5018 chipset
Combined 3000Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (2400Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate with 128 end users, this multiple users can upload or download multiple packets in 160MHz bandwidth at the same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.
Main Features:
11ax 2x2 MU-MIMO support, dual band with 3000Mbps data rate, allow 128+end users to access into the networking;
Support 160MHz bandwidth, faster speed in UL and DL;
Support Seamless roaming, TWT, OFDM...
128+ end users
Hardware Specification

Chipset	IPQ5018+6102(+8081) (8081 is optional for 2.5G Ethernet)
Standard	802.11ax/ac/b/g/n
Flash	SPI NOR 8MB (1.8v) + NAND 128MB
DDR3L	512MB
2.4G Frequency	2.4GHz - 2.484GHz
2.4G Wi-Fi standard	802.11b/g/n/ax
5.8G Frequency	4.9~5.9G
5.8G Wi-Fi Standard	802.11 a/n/ac/ax
Interface	Optional 1(Without 8081): 1 * 10/100 /1000Mbps RJ45 WAN Port and PoE port; 1* Gigabit Console port; Optional 2(With 8081): 1 * 10/100/1000/2500Mbps RJ45 WAN port and PoE port, 1*10/100/1000Mbps LAN port
	1 * Reset button, press 10 seconds to revert to default setting
Antenna	Build in 4*4dBi dual band MIMO Antenna
Data Rate	3000Mbps (2.4G 600Mbps, 5.8G 2400Mbps)
End Users	128+
2.4G RF Power	≤ 20dBm
5.8G RF Power	≤ 19dBm
DC	12V----1.5A
PoE	48V (IEEE 802.3at)
LED light	Sys, WAN, LAN
Power Consumption	≤ 14W
Size	186*186*35.8mm

Firmware Specification

Working Mode	Gateway, AP
Wireless Functions	Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.
	Support SSID hidden
	Support seamless roaming, 802.11kvr standard.
	Support 5G Prior for a faster Ethernet.
	Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3
	Support MAC filter
	Support Wi-Fi time on/off to save energy
	Support client isolation to improve the wireless stability
	Support RF power adjustable, adjust the RF power based on environment.
	Support user quantity limited, Max 64 users to access each band.
Networking Function	VLAN settings
	Cloud access support in gateway mode
Device Management	Back-up the configuration
	Restore the configuration
	Reset to factory default
	Reboot the device: including time reboot or reboot immediately
	Admin management password modify
	Firmware upgrade
	System log
	Support firmware GUI web management, AC controller management, remote management and cloud management
Protocols	IPv4

Antenna Specification

Frequency Range	2.4GHz & 5.8GHz
Impedance	50 Ohms nominal
Gain	4dBi
Radiation	Omni
Polarization	Vertical
S-Parameters (2.4/ 5.8G #2 VSWR)
Antenna Efficiency& Peak Gain (2.4/5.8G#2)
Radiation patterns- 3D (2.4G#2)
Radiation patterns- 3D (5.8G#2)

Application
Accessory

AP	1
Lan cable	1
Mounting Accessories	1
Gift Box	1

---
